> MINISPLIT HP INVERTER SGL ZONE
Inverter technology matches compressor speed to load demand, saving an estimated 40% or more on energy consumption over non-inverter models. Units are rated as high as 23.5 SEER!

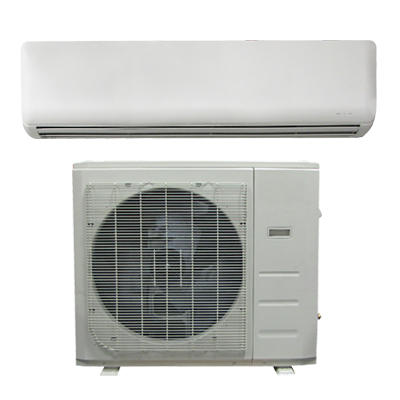

MINISPLIT HP INVERTER SGL ZONE
36K R410A 230V
Detail
36K 208/230V Single Zone Heat Pump System
Refrigerant
R410A
EER
8.50
Conductor AWG
14G 4 Wire Stranded
Voltage
208/230V-1-60
SEER/HSPF
16.00/8.60
Cooling Capacity BTUH
36,000
Fuse Amps
35
Inverter Technology
Yes
Heating Capacity BTUH
36,000
Wireless Remote
Yes
Low Ambient Operation
5°F
Operating Temperature
5° to 122°F cooling, 5° to 86°F heating
Warranty
6 years on compressor, 5 year on parts
Auto Restart
Yes
Modes
Cooling, heating, dehumidification, fan only
Min. Circuit Ampacity
25
Shipping Wt (lbs)
260.2
Test Listing
ETL US and Canada
Certification
AHRI (complete system)
No. of Heads
1
Factory Line-Set Charge (ft.)
25
Item #:
VMH36SD-1-CY
Single Zone
Detail
36K 208/230V Single Zone Heat Pump System
Refrigerant
R410A
EER
8.50
Conductor AWG
14G 4 Wire Stranded
Voltage
208/230V-1-60
SEER/HSPF
16.00/8.60
Cooling Capacity BTUH
36,000
Fuse Amps
35
Inverter Technology
Yes
Heating Capacity BTUH
36,000
Wireless Remote
Yes
Low Ambient Operation
5°F
Operating Temperature
5° to 122°F cooling, 5° to 86°F heating
Warranty
6 years on compressor, 5 year on parts
Auto Restart
Yes
Modes
Cooling, heating, dehumidification, fan only
Min. Circuit Ampacity
25
Shipping Wt (lbs)
260.2
Test Listing
ETL US and Canada
Certification
AHRI (complete system)
No. of Heads
1
Factory Line-Set Charge (ft.)
25
