Home  >  Comfort-Aire  >  Residential A/C & Heat Pumps  >  Air Conditioners  >  SE Series  >  RSA 15  > 2.5 TON 30K R-410A 15 SEER

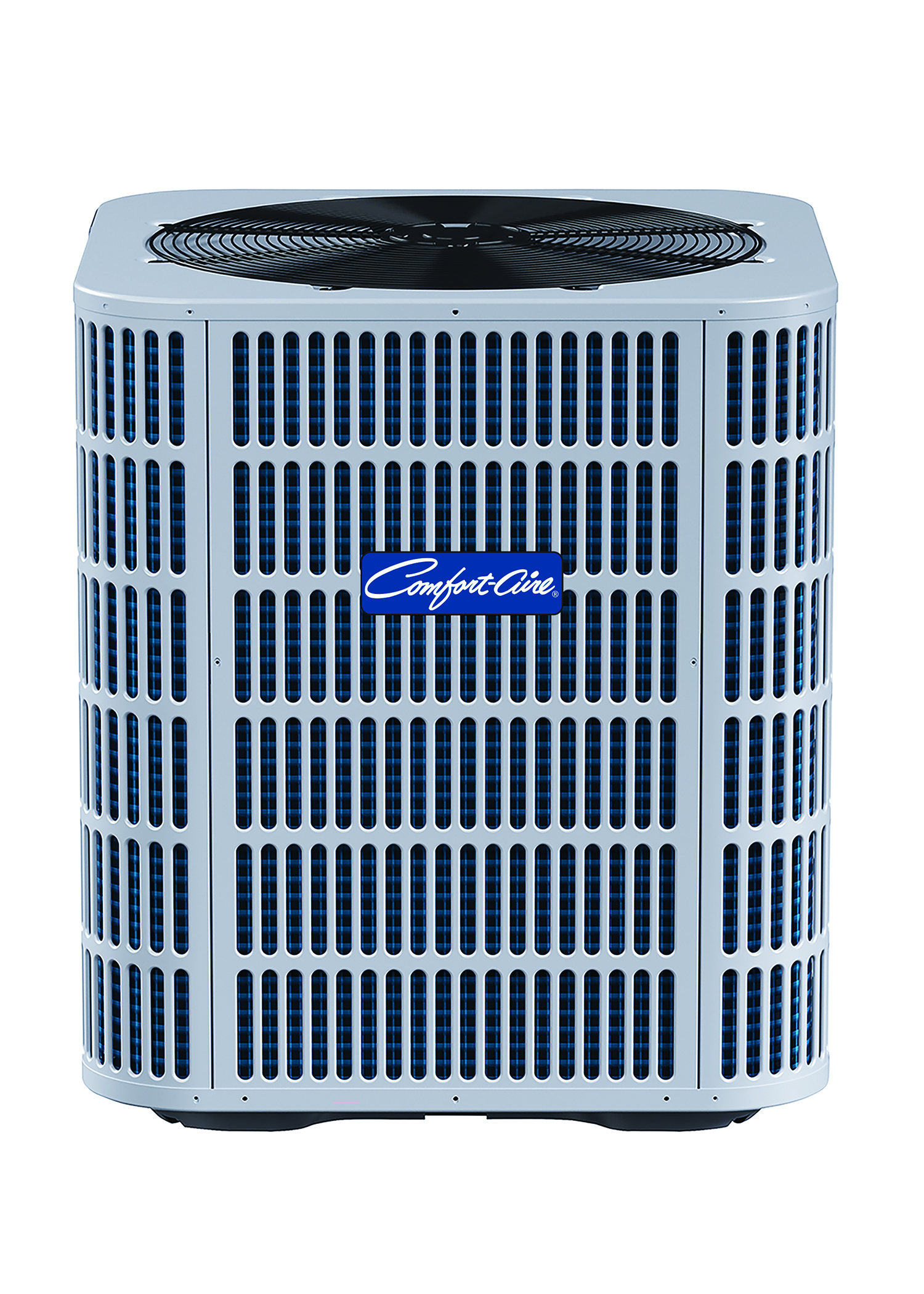

2.5 TON 30K R-410A 15 SEER

ALUM COIL CONDENSING UNIT
Coil Type Fin & Tube SEER (Min.) 15 Capacity (Tons) 2.5 Refrigerant R-410A Voltage 208/230V-1-60 Compressor Rotary No. of Stages 1 Max. Amps 25 LRA 58 Width (in.) 28 SEER2 (Min.) 14.3 RLA 11.4 Warranty 5 years Circuit Breaker 25 Depth (in.) 28 Min. Circuit Ampacity 15.8 Cabinet Galvanized steel with polyester finish Sound Rating (dBA) 72 Connection Size (in.) 3/8 - 3/4 Serviceability Easy access to all components for easy service Shipping Wt (lbs) 156 Height (in.) 33.2 Matches See www.ahridirectory.org Test Listing ETL US and Canada NOTE Efficiences/capacities may vary based on airflow Certification AHRI 210/240 Factory Line-Set Charge (ft.) 15
Item #: RSA1530S1A
2.5 TON 30K R-410A
  • R410A Refrigerant
  • High-quality condenser coil with copper tubing and aluminum fin for maximum heat transfer capacity
  • Top discharge directs hot air and sound away from living area and landscaping
  • Internal protection against high temp motor overload
  • Easy access to electrical panel, pre-wired for easy hook-up
  • All units ETL and AHRI Certified
  • Charged for 15 feet of interconnecting tubing
  • Factory installed high and low pressure switch

    • Air Conditioners

    Coil Type
    Fin & Tube
    SEER (Min.)
    15
    Capacity (Tons)
    2.5
    Refrigerant
    R-410A
    Voltage
    208/230V-1-60
    Compressor
    Rotary
    No. of Stages
    1
    Max. Amps
    25
    LRA
    58
    Width (in.)
    28
    SEER2 (Min.)
    14.3
    RLA
    11.4
    Warranty
    5 years
    Circuit Breaker
    25
    Depth (in.)
    28
    Min. Circuit Ampacity
    15.8
    Cabinet
    Galvanized steel with polyester finish
    Sound Rating (dBA)
    72
    Connection Size (in.)
    3/8 - 3/4
    Serviceability
    Easy access to all components for easy service
    Shipping Wt (lbs)
    156
    Height (in.)
    33.2
    Matches
    See www.ahridirectory.org
    Test Listing
    ETL US and Canada
    NOTE
    Efficiences/capacities may vary based on airflow
    Certification
    AHRI 210/240
    Factory Line-Set Charge (ft.)
    15
