Home
>
Century
>
Water Source/Commercial
>
Console Heat Pump
>
HRC Series
> WSHP CONSOLE 9K ULTRA UNIT/TST

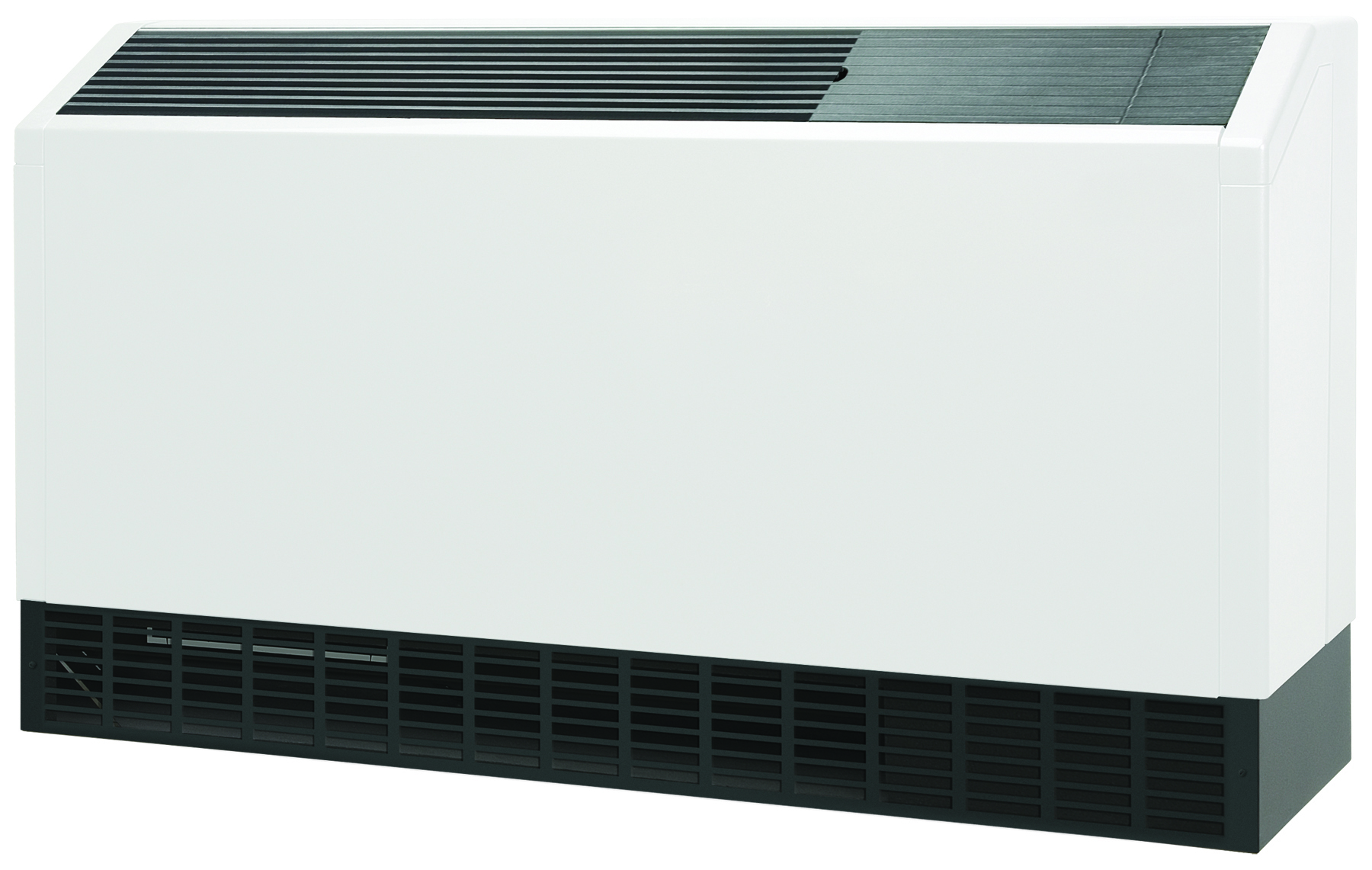

WSHP CONSOLE 9K ULTRA UNIT/TST
CU COIL B/RTN RH 208/203-1-60
Configuration
Console
Capacity (Tons)
0.75
Return
Bottom with Ultra Quiet
EER
13.3
Voltage
208/230V-1-60
Compressor
Rotary
COP
4.6
Application
Boiler/Cooling Tower
Width (in.)
48
Water Loop Cooling BTUH
8,600
Ground Water Cooling BTUH
9,200
Water Loop Heating BTUH
11,400
Warranty
5 Yrs compressor, 1 Yr parts
Ground Water Heating BTUH
9,500
Depth (in.)
12
Controller
Unit mounted T-stat with CXM
Sub Base
5" Black standard
Piping Connections
Right
Extended Range Operation
20 - 120 F
Shipping Wt (lbs)
185
Height (in.)
26
Test Listing
ETL US and Canada
NOTE
Call 877-442-4482 for special order options
Certification
AHRI
Ground Loop Cooling BTUH
8,800
Ground Loop Heating BTUH
7,300
Item #:
HRC09A1CAMSCFR-CY
Water source console is designed for ductless installations or where individual comfort control is required
Features advanced digital changeover between heating and cooling.
Numerous options available for customizing the installation. 3/4 to 1-1/2 tons.
