Home  >  Motors  >  Refrigeration  >  3.3 Inch  > 3.3",1/15HP,230V,1500RPM

3.3",1/15HP,230V,1500RPM

No. of Poles 4 Motor Type Shaded Pole Enclosure OAO HP (Max.) 1/15 Voltage 208-230 Mounting Extended Studs Speeds 1 Hz 60 Rotation CW SE RPM Range 1550/1300 NEMA Frame Size 3.3 Phase Single Standards UR/CSA FLA 1.1 Bearing Sleeve Lead Length (in.) 13 Thermal Protection Thermally Ambient Deg C 40 Ins. Class B Shaft Dia. (in.) 5/16 Shaft Length (in.) 3 Service Factor 1.0 Duty Air Over

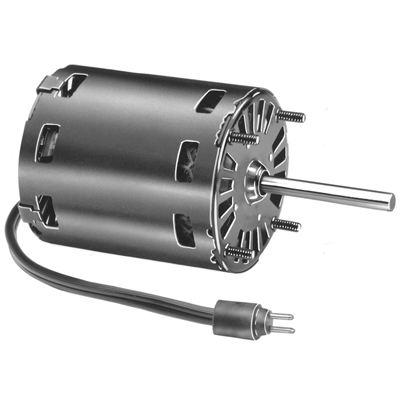

Item #: D1126
3.3

OEM Direct Replacement Motor

  • 3.3" Diameter
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 5/16" Diameter Shaft with Flat
  • 13" Leads with Quick Connect Molded Plug
  • Extended Studs Shaft End and OSE

    • Motors

    No. of Poles
    4
    Motor Type
    Shaded Pole
    Enclosure
    OAO
    HP (Max.)
    1/15
    Voltage
    208-230
    Mounting
    Extended Studs
    Speeds
    1
    Hz
    60
    Rotation
    CW SE
    RPM Range
    1550/1300
    NEMA Frame Size
    3.3
    Phase
    Single
    Standards
    UR/CSA
    FLA
    1.1
    Bearing
    Sleeve
    Lead Length (in.)
    13
    Thermal Protection
    Thermally
    Ambient Deg C
    40
    Ins. Class
    B
    Shaft Dia. (in.)
    5/16
    Shaft Length (in.)
    3
    Service Factor
    1.0
    Duty
    Air Over
