> 3.3",1/12HP,208-230V,1500RPM

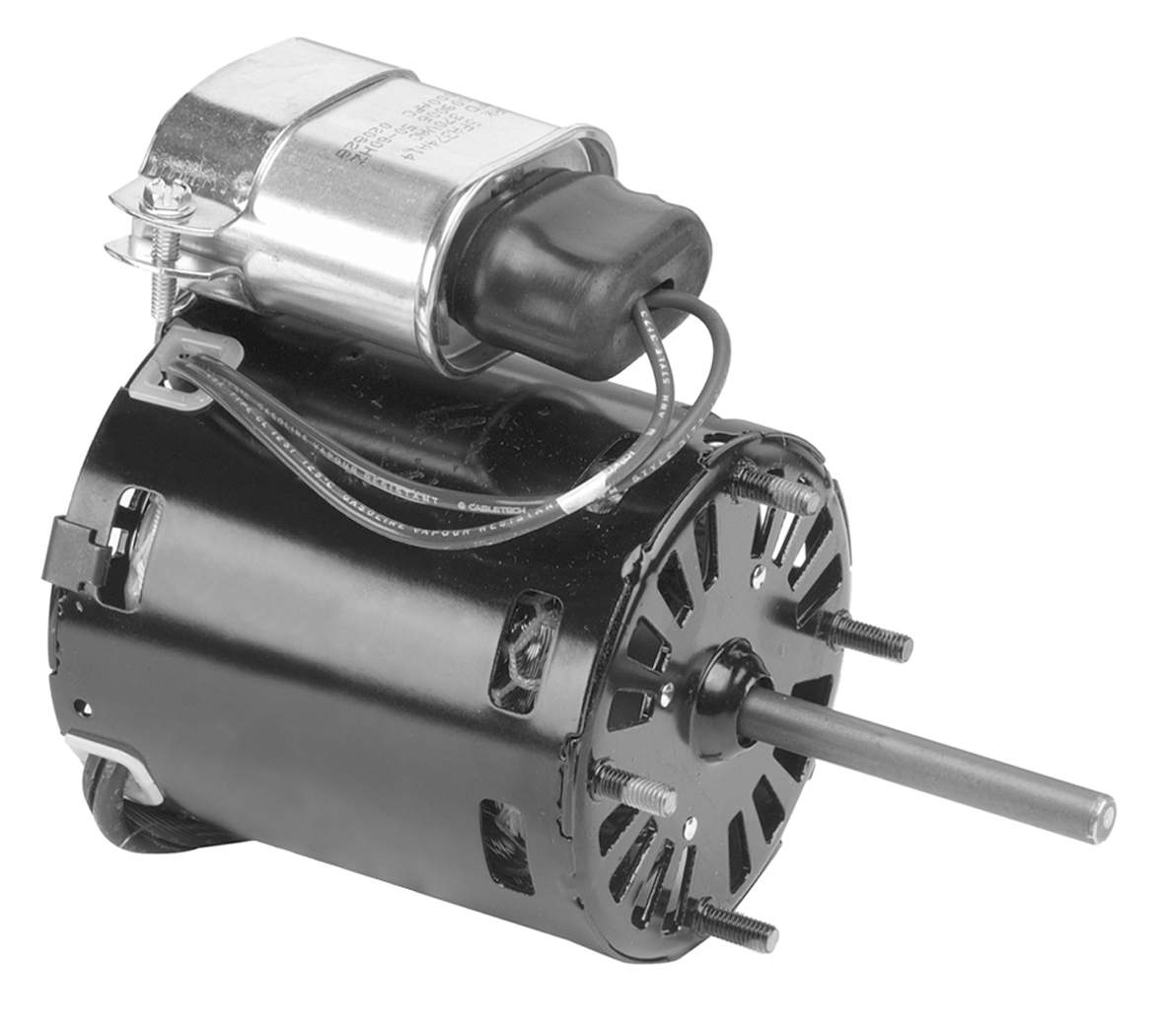

3.3" Diameter PSC Thermally Protected Open Air Over Class B Insulation, 40°C Ambient Sleeve Bearing 5/16" Diameter Shaft with Flat 13" Leads with Quick Connect Molded Plug Extended Studs Shaft End
3.3",1/12HP,208-230V,1500RPM
No. of Poles
4
Motor Type
PSC
Enclosure
OAO
HP (Max.)
1/20
Voltage
208-230
Mounting
Extended Studs Shaft End
Speeds
1
Hz
60
Rotation
CCW SE
Multi-Rated HP
1/20 - 1/15
RPM Range
1400/1550
NEMA Frame Size
3.3
Phase
Single
Standards
UR/CSA
FLA
0.4/0.5
Bearing
Sleeve
Lead Length (in.)
13
Thermal Protection
Thermally
Ambient Deg C
40
Ins. Class
B
Shaft Dia. (in.)
5/16
Capacitor Included
Yes
Shaft Length (in.)
2.625
Capacitor Rating
4/370
Service Factor
1.0
Duty
Air Over
Item #:
D1125
OEM Direct Replacement Motor
