Home
>
Century
>
Residential A/C & Heat Pumps
>
Air Conditioners
>
CMA 15 Horizontal
> CONDENSER 48K 230V

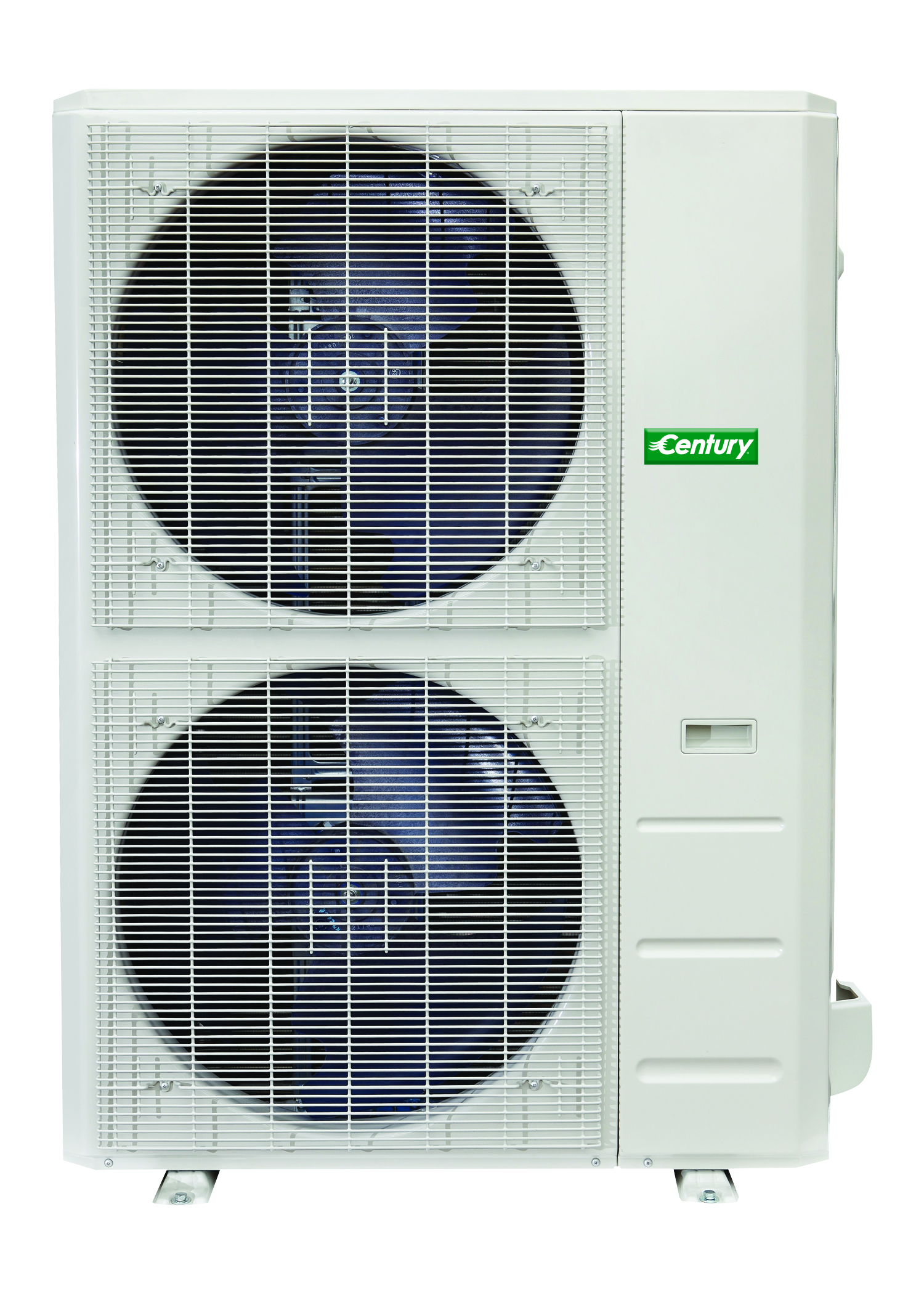

CONDENSER 48K 230V
SIDE DISCHARGE
Coil Type
Fin & Tube
SEER (Min.)
15
Capacity (Tons)
4
Refrigerant
R-410A
Voltage
208/230V-1-60
Compressor
Rotary
No. of Stages
Inverter
Width (in.)
37.48
SEER2 (Min.)
15.9
RLA
22.1
Warranty
Compressor 7 yr. Parts 5 yr.
EER2 (Min.)
11
Circuit Breaker
50
Depth (in.)
16.34
Min. Circuit Ampacity
32
Cabinet
Galvanized steel, painted finish
Sound Rating (dBA)
65
Connection Size (in.)
3/8 - 7/8
Serviceability
Easy access to all components for easy service
Shipping Wt (lbs)
110.8
Height (in.)
52.48
Matches
See www.ahridirectory.org
Test Listing
UL US and Canada
NOTE
Efficiences/capacities may vary based on airflow
Certification
AHRI 210/240
Factory Line-Set Charge (ft.)
25
Item #:
CMA1548SA-1-CY
Our 15 SEER A/C condensers are compact to fit tight spaces
- AHRI matched to CCG, MCG, coils
- For installation in all regions
A/C Condensers
Coil Type
Fin & Tube
SEER (Min.)
15
Capacity (Tons)
4
Refrigerant
R-410A
Voltage
208/230V-1-60
Compressor
Rotary
No. of Stages
Inverter
Width (in.)
37.48
SEER2 (Min.)
15.9
RLA
22.1
Warranty
Compressor 7 yr. Parts 5 yr.
EER2 (Min.)
11
Circuit Breaker
50
Depth (in.)
16.34
Min. Circuit Ampacity
32
Cabinet
Galvanized steel, painted finish
Sound Rating (dBA)
65
Connection Size (in.)
3/8 - 7/8
Serviceability
Easy access to all components for easy service
Shipping Wt (lbs)
110.8
Height (in.)
52.48
Matches
See www.ahridirectory.org
Test Listing
UL US and Canada
NOTE
Efficiences/capacities may vary based on airflow
Certification
AHRI 210/240
Factory Line-Set Charge (ft.)
25
