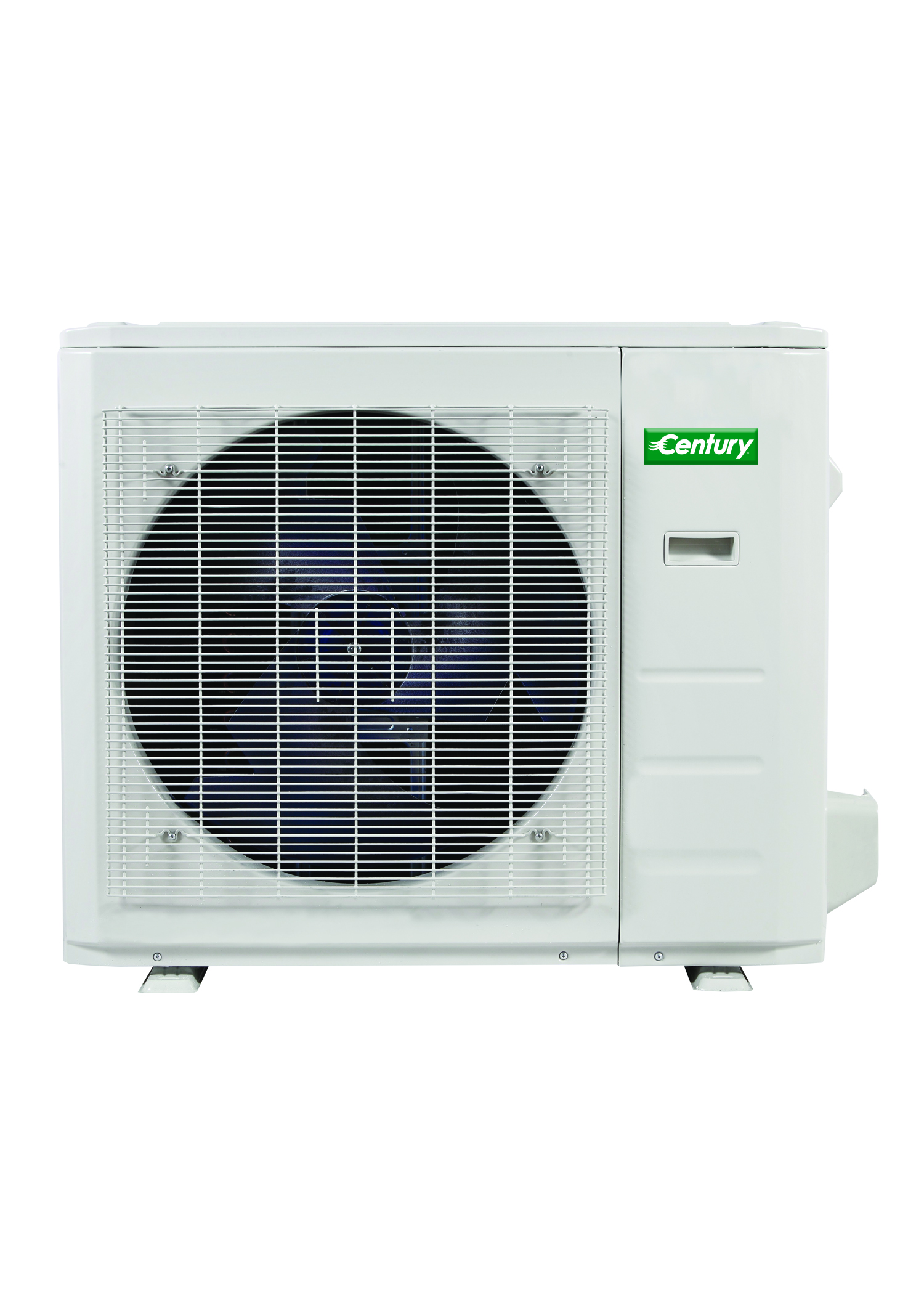

CONDENSER 18K 230V
SIDE DISCHARGE
Coil Type
Fin & Tube
SEER (Min.)
15
Capacity (Tons)
1.5
Refrigerant
R-410A
Voltage
208/230V-1-60
Compressor
Rotary
No. of Stages
Inverter
Width (in.)
35.04
SEER2 (Min.)
16.5
RLA
8.0
Warranty
Compressor 7 yr. Parts 5 yr.
EER2 (Min.)
11.7
Circuit Breaker
20
Depth (in.)
13.46
Min. Circuit Ampacity
15
Cabinet
Galvanized steel, painted finish
Sound Rating (dBA)
57
Connection Size (in.)
3/8 - 3/4
Serviceability
Easy access to all components for easy service
Shipping Wt (lbs)
42
Height (in.)
26.50
Matches
See www.ahridirectory.org
Test Listing
UL US and Canada
NOTE
Efficiences/capacities may vary based on airflow
Certification
AHRI 210/240
Factory Line-Set Charge (ft.)
25
Item #:
CMA1518SA-1-CY
Our 15 SEER A/C condensers are compact to fit tight spaces
- AHRI matched to CCG, MCG, coils
- For installation in all regions
