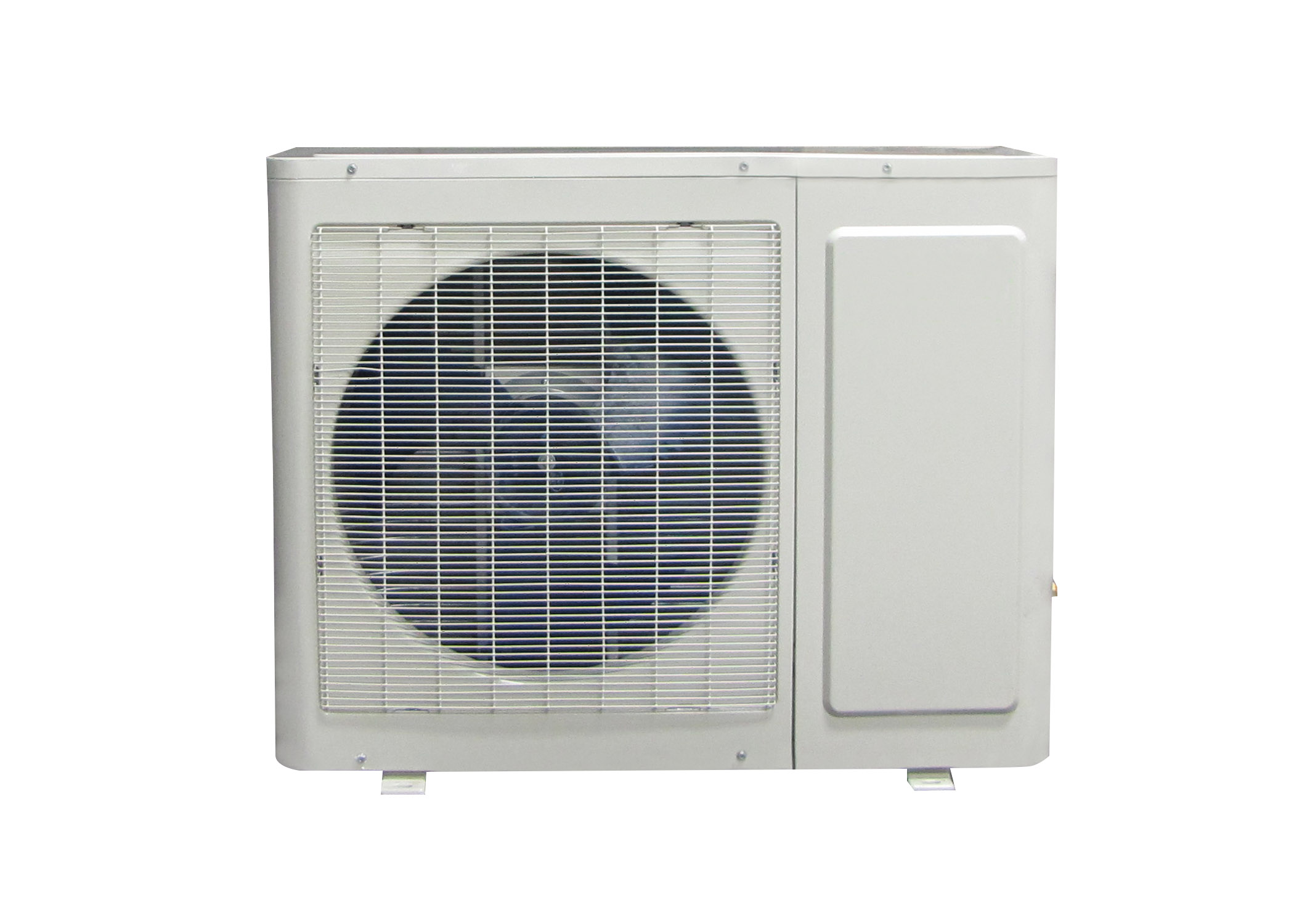

AC CONDENSER
SIDE DISCHARGE 14.5 SEER
Coil Type
Fin & Tube
SEER (Min.)
14
Capacity (Tons)
2
Refrigerant
R-410A
Voltage
208/230V-1-60
Compressor
Rotary
No. of Stages
1
Max. Amps
15
Width (in.)
41
RLA
8.36
Warranty
Compressor 5 yr. Parts 1 yr.
Circuit Breaker
15
Depth (in.)
17.5
Min. Circuit Ampacity
11
Cabinet
Galvanized steel, painted finish
Sound Rating (dBA)
58
Connection Size (in.)
3/8 - 5/8
Serviceability
Compressor and Component Access through Side Panel
Shipping Wt (lbs)
117
Height (in.)
32
Matches
See www.ahridirectory.org
Test Listing
ETL US and Canada
NOTE
Efficiences/capacities may vary based on airflow
Certification
AHRI 210/240
Factory Line-Set Charge (ft.)
25
Item #:
CMA1424SF-1
Our 14 SEER A/C condensers are compact to fit tight spaces
- AHRI matched to CCG, MCG, coils
- For installation in all regions
Air Conditioners
Coil Type
Fin & Tube
SEER (Min.)
14
Capacity (Tons)
2
Refrigerant
R-410A
Voltage
208/230V-1-60
Compressor
Rotary
No. of Stages
1
Max. Amps
15
Width (in.)
41
RLA
8.36
Warranty
Compressor 5 yr. Parts 1 yr.
Circuit Breaker
15
Depth (in.)
17.5
Min. Circuit Ampacity
11
Cabinet
Galvanized steel, painted finish
Sound Rating (dBA)
58
Connection Size (in.)
3/8 - 5/8
Serviceability
Compressor and Component Access through Side Panel
Shipping Wt (lbs)
117
Height (in.)
32
Matches
See www.ahridirectory.org
Test Listing
ETL US and Canada
NOTE
Efficiences/capacities may vary based on airflow
Certification
AHRI 210/240
Factory Line-Set Charge (ft.)
25
