Home
>
Comfort-Aire
>
Residential A/C & Heat Pump
>
A/C Condensers
>
RSG 16 P
>
CMA 14 Horizontal
> CONDENSER 18K 230V

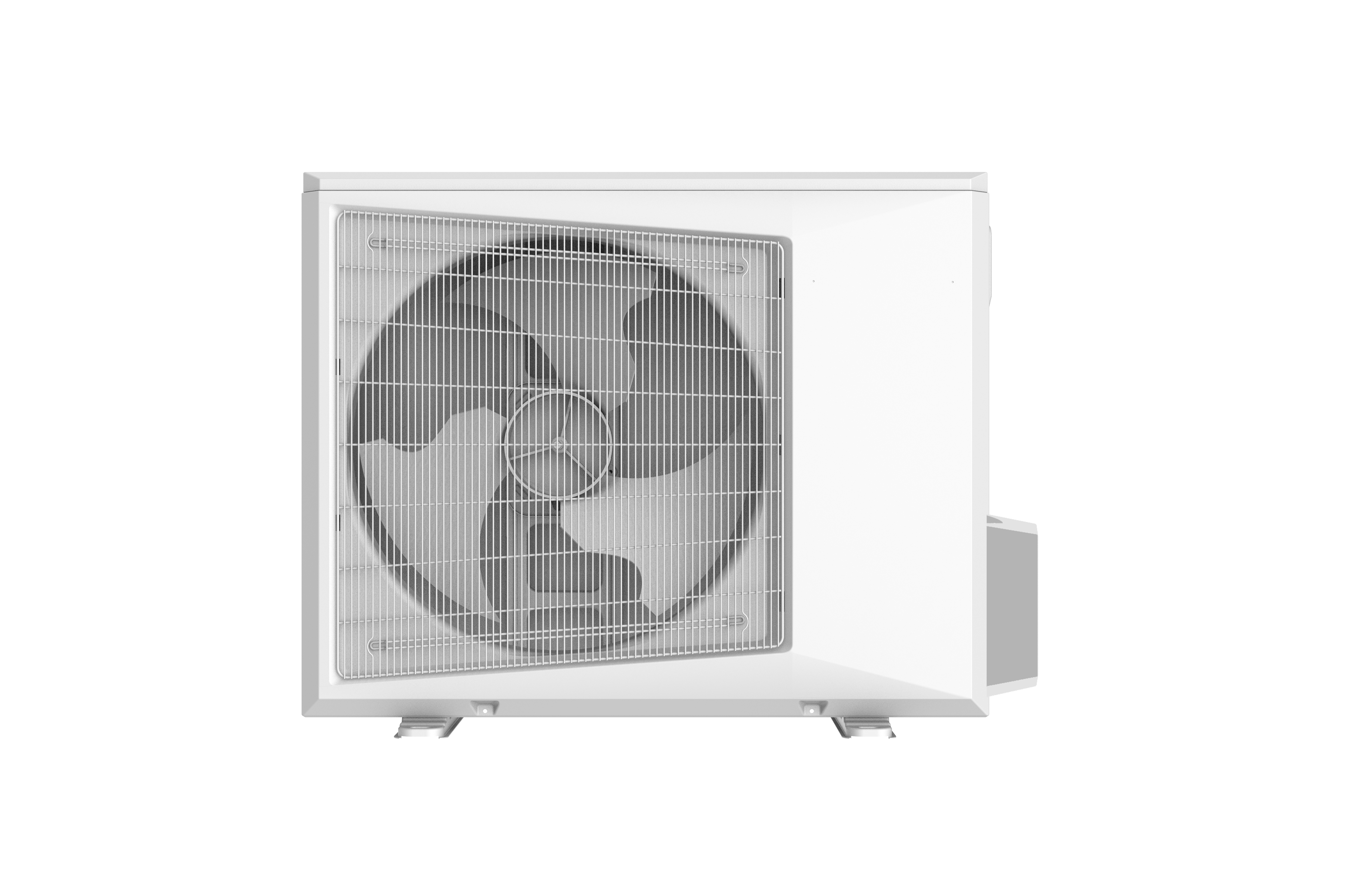

CONDENSER 18K 230V
SIDE DISCHARGE
Coil Type
Fin & Tube
SEER (Min.)
14
Capacity (Tons)
1.5
Refrigerant
R-410A
Voltage
208/230V-1-60
Compressor
Rotary
No. of Stages
1
Max. Amps
15
Width (in.)
36
RLA
7.1
Warranty
Compressor 5 yr. Parts 2 yr.
Circuit Breaker
15
Depth (in.)
15
Min. Circuit Ampacity
10
Cabinet
Galvanized steel, painted finish
Sound Rating (dBA)
58
Connection Size (in.)
1/4-1/2
Serviceability
Compressor and Component Access through Side Panel
Shipping Wt (lbs)
114.6
Height (in.)
27.64
Matches
See www.ahridirectory.org
Test Listing
ETL US and Canada
NOTE
Efficiences/capacities may vary based on airflow
Certification
AHRI 210/240
Factory Line-Set Charge (ft.)
25
Item #:
CMA1418SG-1
Our 14 SEER A/C condensers are compact to fit tight spaces
- AHRI matched to CCG, MCG, coils
- For installation in all regions
Air Conditioners
Coil Type
Fin & Tube
SEER (Min.)
14
Capacity (Tons)
1.5
Refrigerant
R-410A
Voltage
208/230V-1-60
Compressor
Rotary
No. of Stages
1
Max. Amps
15
Width (in.)
36
RLA
7.1
Warranty
Compressor 5 yr. Parts 2 yr.
Circuit Breaker
15
Depth (in.)
15
Min. Circuit Ampacity
10
Cabinet
Galvanized steel, painted finish
Sound Rating (dBA)
58
Connection Size (in.)
1/4-1/2
Serviceability
Compressor and Component Access through Side Panel
Shipping Wt (lbs)
114.6
Height (in.)
27.64
Matches
See www.ahridirectory.org
Test Listing
ETL US and Canada
NOTE
Efficiences/capacities may vary based on airflow
Certification
AHRI 210/240
Factory Line-Set Charge (ft.)
25
