Home
>
Comfort-Aire
>
Air Handlers
>
Hydronic
>
PSC Motor
> AIR HANDLER HYDRONIC 115VAC

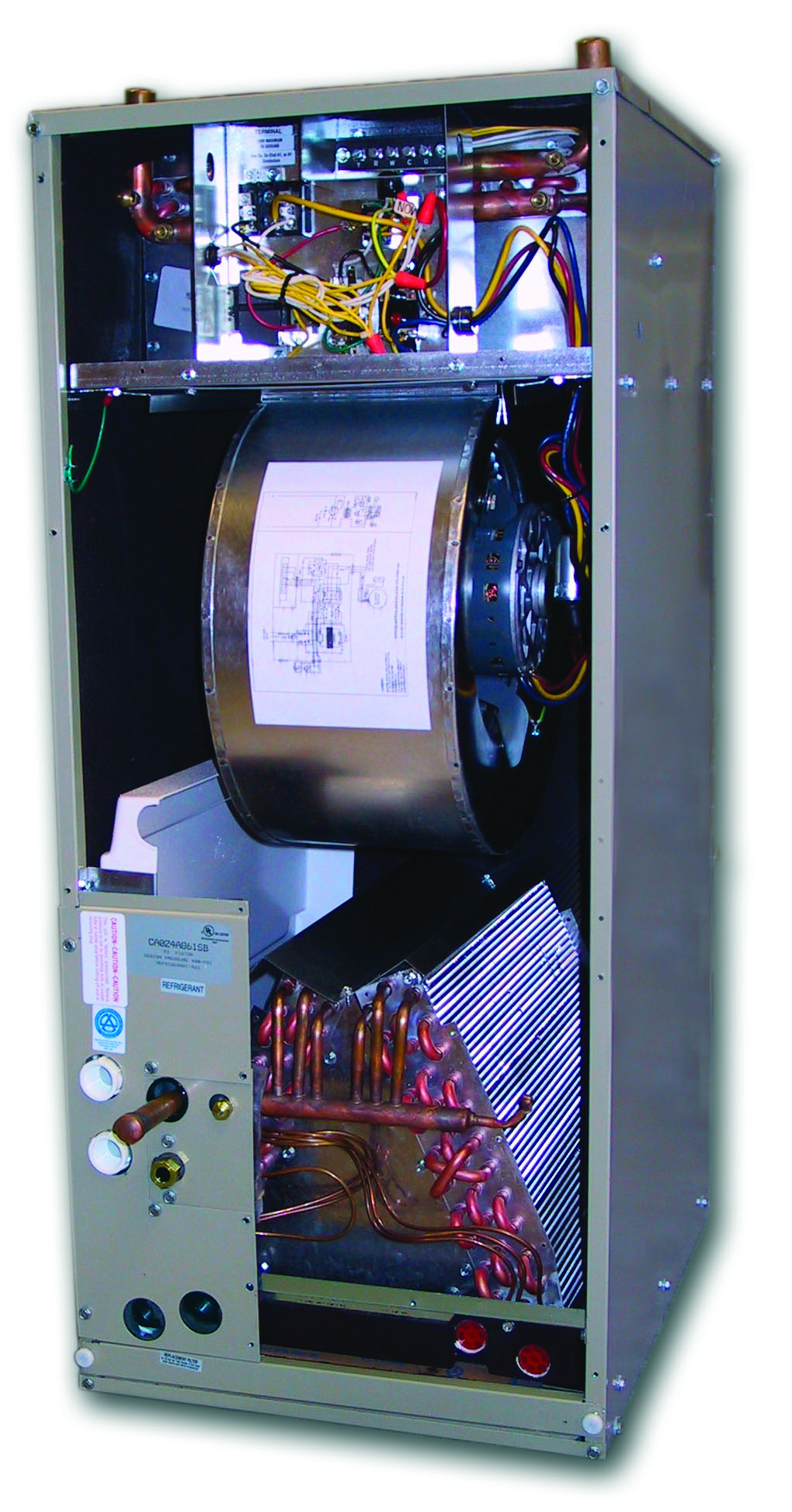

AIR HANDLER HYDRONIC 115VAC
MULTIPOS 2.5TON W/R410A TXV
Coil Type
Copper tube/aluminum fin
Motor Type
PSC
Heating Source
Hydronic heat coil installed
Refrigerant
R-410A
Voltage
115V-1-60
HP
1/3
Application
Multi-Position, use in boiler loops
Speeds
3
Width (in.)
17.5
Blower Drive (Tons)
2.5
Metering Device
TXV, Factory Installed
Warranty
Up to 12 years when part of an AHRI matched system
Circuit Breaker
15
Depth (in.)
21
Min. Circuit Ampacity
7.8
Cabinet
Galvanized steel, painted front & top
Liquid Line Connection (in.)
3/8
Shipping Wt (lbs)
145
Height (in.)
40.75
Suction Line Connection (in.)
3/4
Test Listing
ETL US and Canada
NOTE
See marsdeliversratings.com for certified ratings
Certification
AHRI when part of matched system
Blower Amps
6.2
Filter Size
16x20
Blower Wheel Size DxW (in.)
16x12.5
Item #:
AHG30-0A
Hydronic air handler for boiler loop, ideal for replacements
- A/C ready with A-coil
- Freeze protection for both heating and cooling
- Multi-position design
- Factory installed TXV for R-410A
