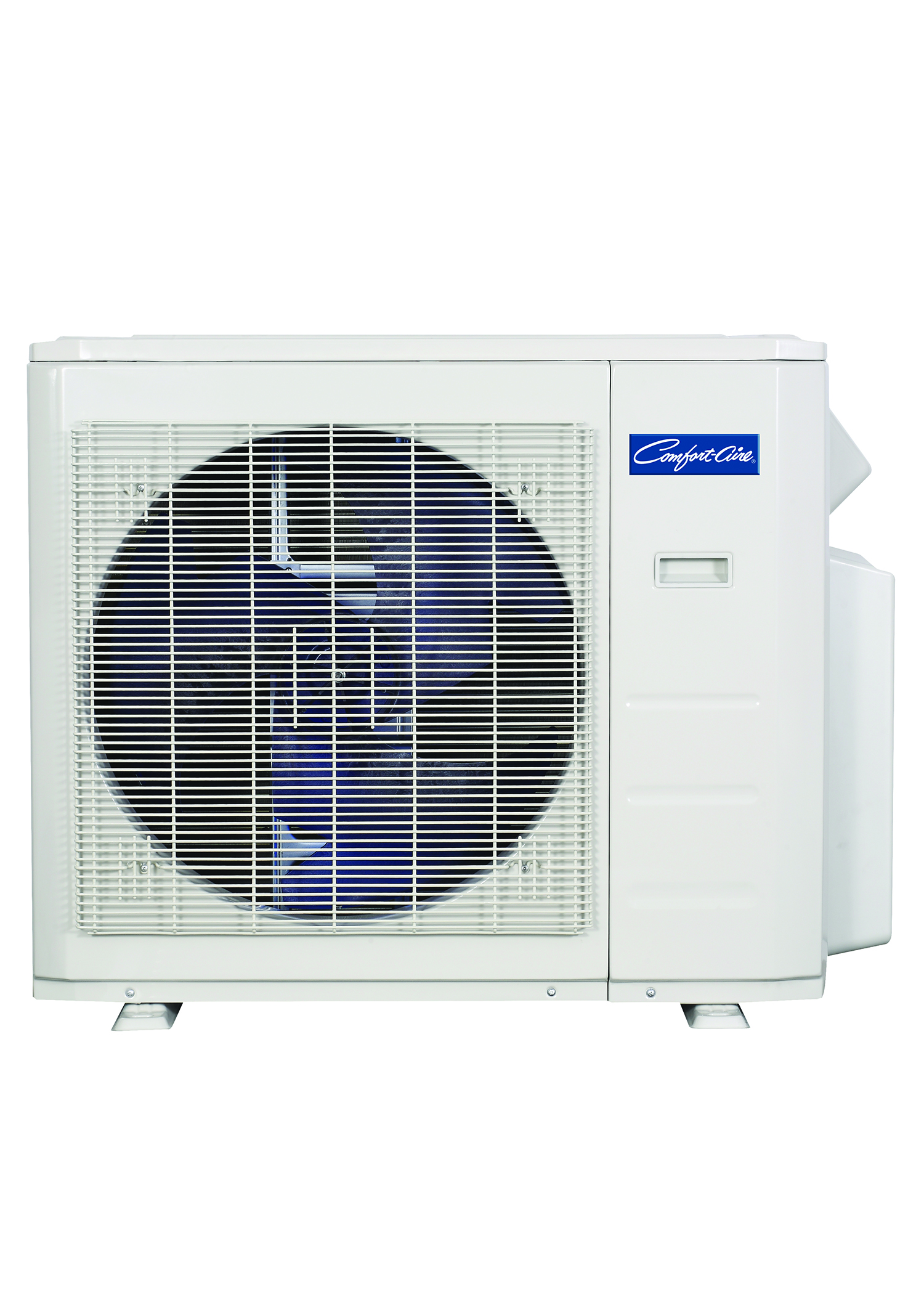

> 36K 208/230V HP ULTRA LOW OUTD
High efficiency HyperV outdoor unit operates down to -22°F ambient temperature Inverter technology matches compressor speed to load demand, saving an estimated 40% or more on energy consumption over non-inverter models Units are rated as high as 28.5 SEER
36K 208/230V HP ULTRA LOW OUTD
MULTI ZONE HYPER HEAT
Detail
36K 4 Zone Heat Pump
Refrigerant
R410A
EER
10.50
Conductor AWG
14G 4 Wire Stranded
Voltage
208/230V-1-60
SEER/HSPF
21.50/13.50
Cooling Capacity BTUH
36,000
Fuse Amps
60
Inverter Technology
Yes
Heating Capacity BTUH
35,800
Wireless Remote
Yes
Low Ambient Operation
-22°F
Operating Temperature
-22° to 122°F cooling, -22° to 86°F heating
Warranty
10 years on compressor, 10 year on parts
Auto Restart
Yes
Modes
Cooling, heating, dehumidification, fan only
Min. Circuit Ampacity
40
Dimensions HxWxD (in.)
52.375x37.375x16.375
Shipping Wt (lbs)
253.97
Test Listing
ETL US and Canada
NOTE
Smart Phone Capable
Certification
AHRI (complete system)
SEER2/EER2
21.2/13.6
No. of Heads
4
Factory Line-Set Charge (ft.)
100
HSPF2
10.3
Item #:
A-VMH36QV-1
