Multi-zone outdoor unit is designed to handle two indoor air handlers Indoor units may be mixed and matched Inverter technology saves an estimated 40% or more on energy consumption over non-inverter models Delivers extra heating capacity; 100% at 0°F

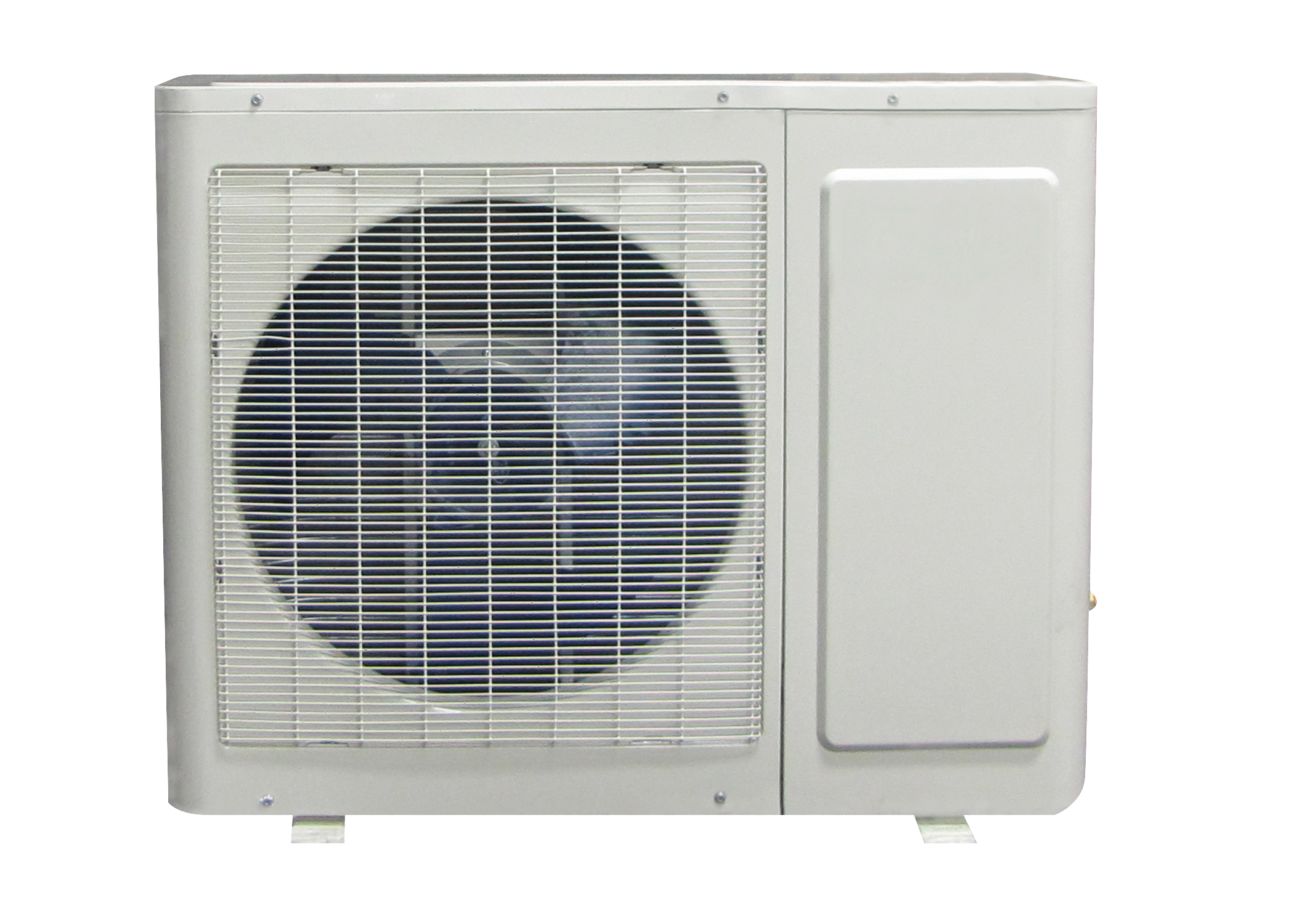

MULTI HEAD OUTDOOR
MINI-SPLIT 2 ZONE
Detail
18K 2 Zone Heat Pump
Refrigerant
R410A
EER
9.80
Conductor AWG
14G 4 Wire Stranded
Voltage
208/230V-1-60
SEER/HSPF
21.50/12.50
Cooling Capacity BTUH
19,000
Fuse Amps
35
Inverter Technology
Yes
Heating Capacity BTUH
20,000
Wireless Remote
Yes
Low Ambient Operation
-22°F
Operating Temperature
-22° to 122°F cooling, -22° to 86°F heating
Warranty
7 years on compressor, 5 year on parts
Auto Restart
Yes
Modes
Cooling, heating, dehumidification, fan only
Min. Circuit Ampacity
25
Dimensions HxWxD (in.)
31.875x37.25x16.125
Shipping Wt (lbs)
161
Test Listing
ETL US and Canada
NOTE
Smart Phone Capable
Certification
AHRI (complete system)
No. of Heads
2
Factory Line-Set Charge (ft.)
50
Item #:
A-VMH18DU-1
