Home  >  HVAC/R Components  >  Relays  > POWER-PILOT 24V

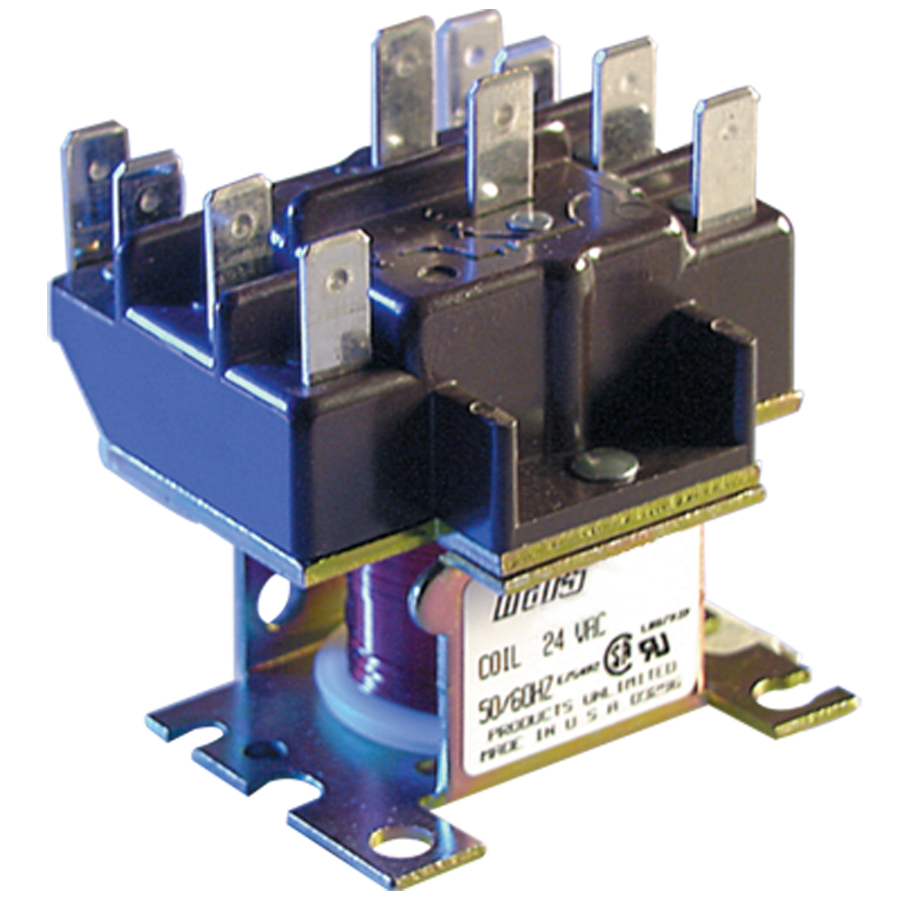

POWER-PILOT 24V

Contact Rating Amps 25A at 277 VAC Resistive 15A at 277VAC Inductive Pick-up Voltage <=19.2VAC Relay Type HVAC/R Mounting Bracket Hold Voltage 19.2VAC Drop-out Voltage >=4.8VAC Hz 50/60 Terminal Style Quick Connect
Item #: 90343
POWER-PILOT 24V

MARS 2-Pole Air Conditioning Relays

  • Replaces Honeywell & White-Rodgers/RBM
  • Double QC terminals on coil
  • Dimensions: 2.13 x 1.88 x 2.25 in
  • Base designed for easy repl. Competitive relays
  • Molded terminal numbers
  • Circuit diagram on top of relay
  • UL/CSA Listed

Relays

Contact Rating Amps
25A at 277 VAC Resistive 15A at 277VAC Inductive
Pick-up Voltage
<=19.2VAC
Relay Type
HVAC/R
Mounting
Bracket
Hold Voltage
19.2VAC
Drop-out Voltage
>=4.8VAC
Hz
50/60
Terminal Style
Quick Connect
