Home  >  JARD  >  Fuses  > 90A 600V UL CL RK-5 TIME DLY

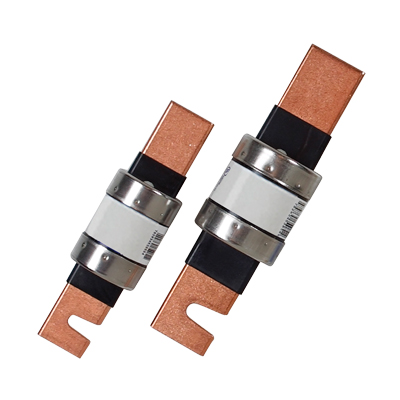

90A 600V UL CL RK-5 TIME DLY

Diameter (in.) 1.313 Type Time-Delay Series Class RK5 Voltage 600VAC 600VDC Fuse Amps 90 Length (in.) 7.875 Indicating No Element Dual Body Material Polyester Body Style Blade Standards UL/CSA Interrupt Rating 200kA IR AC 20kA IR DC
Item #: 81145

Standard Pack: 5
Must order in multiples of: 5
90A 600V UL CL RK-5
  • Provides branch circuit protection
  • Non-renewable fuse that conform to UL
  • General purpose applications, Lighting Heating
  • Non-inductive loads
  • Replaces: TRS, ECSR, FRSR, FLSR

    • Fuses

    Diameter (in.)
    1.313
    Type
    Time-Delay
    Series
    Class RK5
    Voltage
    600VAC 600VDC
    Fuse Amps
    90
    Length (in.)
    7.875
    Indicating
    No
    Element
    Dual
    Body Material
    Polyester
    Body Style
    Blade
    Standards
    UL/CSA
    Interrupt Rating
    200kA IR AC 20kA IR DC
