Home  >  JARD  >  Fuses  > 600A 250V UL CL RK-5 TIME DLY

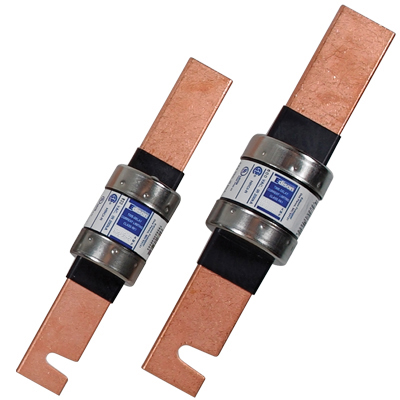

600A 250V UL CL RK-5 TIME DLY

Diameter (in.) 2.563 Type Time-Delay Series Class RK5 Voltage 250VAC 160VDC Fuse Amps 600 Length (in.) 10.375 Indicating No Element Dual Body Material Polyester Body Style Blade Standards UL/CSA Interrupt Rating 200kA IR AC 20kA IR DC
Item #: 81055
600A 250V UL CL RK-
  • Provides branch circuit protection
  • Non-renewable fuse that conform to UL
  • General purpose applications, Lighting Heating
  • Non-inductive loads
  • Replaces: TR, ECNR, FRNR, FLNR

    • Fuses

    Diameter (in.)
    2.563
    Type
    Time-Delay
    Series
    Class RK5
    Voltage
    250VAC 160VDC
    Fuse Amps
    600
    Length (in.)
    10.375
    Indicating
    No
    Element
    Dual
    Body Material
    Polyester
    Body Style
    Blade
    Standards
    UL/CSA
    Interrupt Rating
    200kA IR AC 20kA IR DC
