Home  >  HVAC/R Components  >  Expansion Valves  > MARS UNIV AC/HP TXV 3.5-4 R22

MARS UNIV AC/HP TXV 3.5-4 R22

Inlet (in.) 3/8 Outlet (in.) 3/8 Equalization External Capacity (Tons) 3 1/2 to 4 Refrigerant R22/R407C Inlet connection type SOLDER Nom. Capacity (Tons) 5.6 Application AC and Heat Pumps Outlet connection type SOLDER Balanced Port Yes Bulb Charge MAH Anti-Hunt Included Evaporator Fittings Aeroquip, Chatleff, 3/8 Flare Included Equalization Fittings 7/8" and 3/4" X 1/4"
Item #: 72006
72006

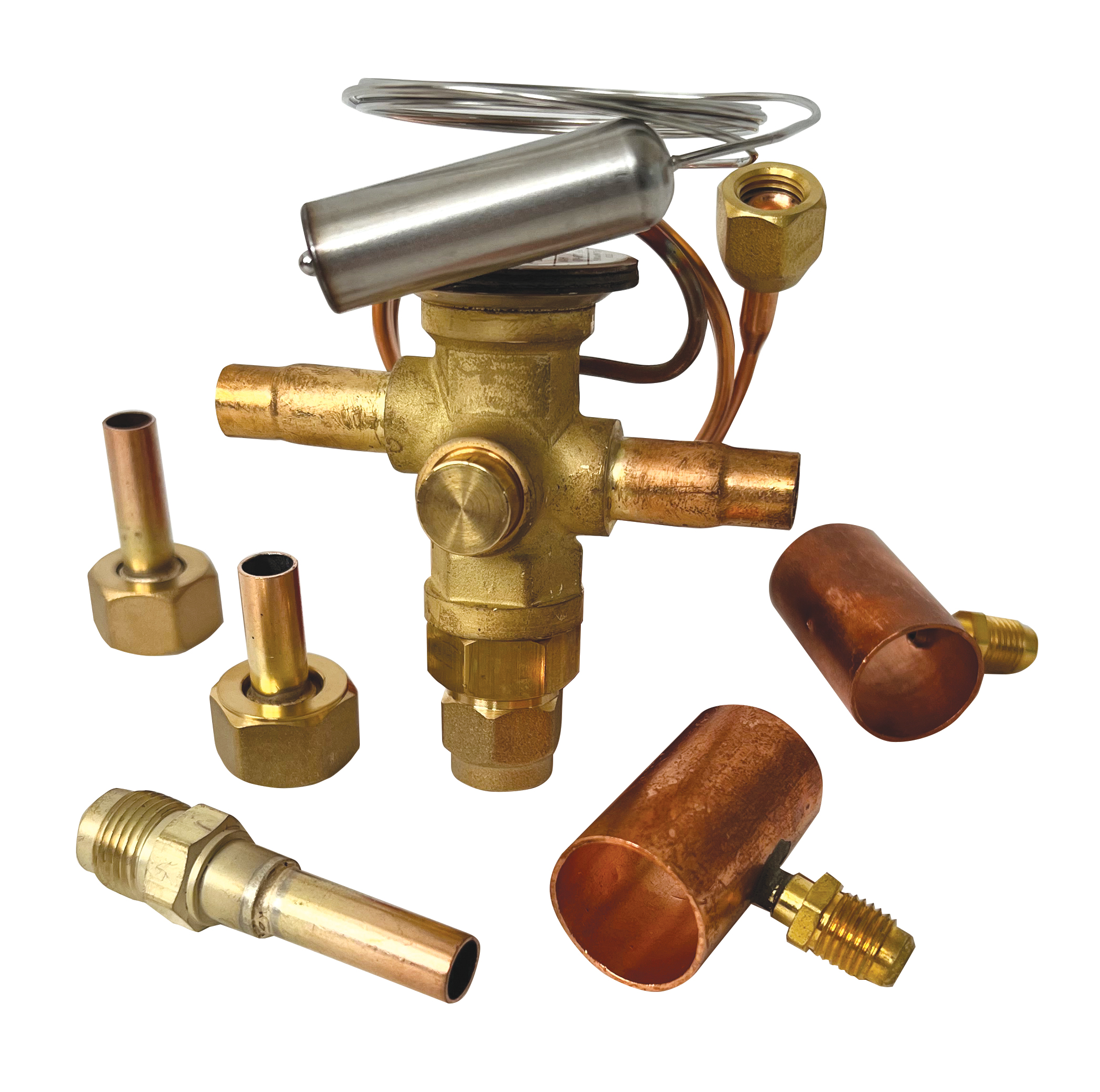

MARS Universal AC/HP TXV

  • Use as efficiency upgrade or for failed valve
  • Kitted with most necessary fittings
  • Includes Chatleff, Aeroquip, & 3/8" flare fittings
  • Includes 7/8" and 3/4" x 1/4" equalization tees
  • Robust stainless steel power element and cap tube
  • Easy to select using refrigerant and system cap.

Expansion Valves

Inlet (in.)
3/8
Outlet (in.)
3/8
Equalization
External
Capacity (Tons)
3 1/2 to 4
Refrigerant
R22/R407C
Inlet connection type
SOLDER
Nom. Capacity (Tons)
5.6
Application
AC and Heat Pumps
Outlet connection type
SOLDER
Balanced Port
Yes
Bulb Charge
MAH Anti-Hunt
Included Evaporator Fittings
Aeroquip, Chatleff, 3/8 Flare
Included Equalization Fittings
7/8" and 3/4" X 1/4"
