Home  >  HVAC/R Components  >  Contactors  >  MARS 780 Contactors  > 2P 30A 480V QC & BL TERM

2P 30A 480V QC & BL TERM

Contactor Type Definite Purpose No. of Poles 2 FLA Inductive 30 FLA Resistive 40 Coil Voltage 480 Lug or Screw Terminal Box Lug/Quad QC Standards UL
Item #: 61749
2P 30A 480V QC & BL

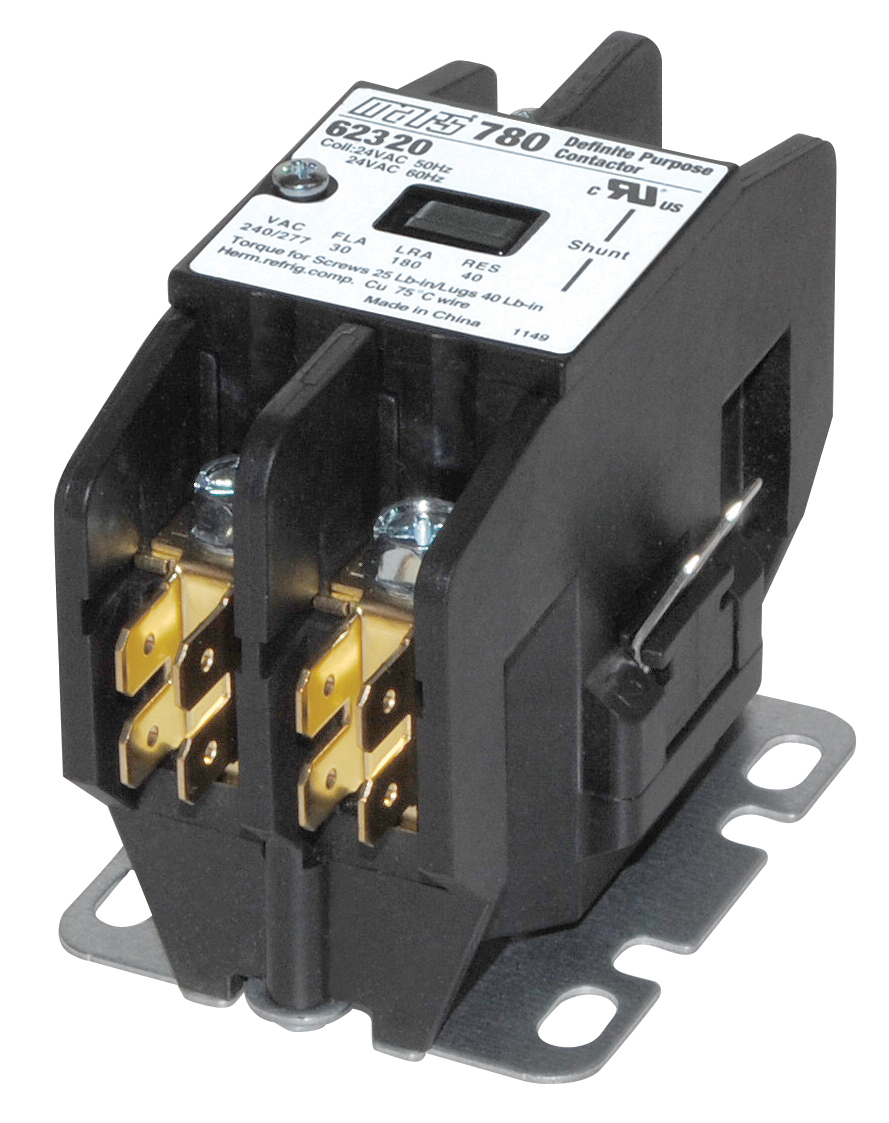

MARS 780 Professional Grade Definite Purpose Contactors

  • Designed for use on refrigeration, air conditioning and electric heating systems
  • Engineered for today's most demanding commercial refrigeration and HVAC applications
  • Enclosed body provides a quieter running contactor and a longer life expectancy
  • Oversized Arch Window to simplify wiring
  • High Performance Copper & Brass Conductors maximize current carrying capability creating a cooler running contactor
  • Multi-purpose Coil Terminals allow the use of QC terminals or stripped wires
  • Removable Coils allow field replacement of damaged coils
  • Removable Cover provides full access to the contacts
  • Thermoplastic Housing resists dusting and contamination of the contacts to maintain maximum conductivity

Contactors

Contactor Type
Definite Purpose
No. of Poles
2
FLA Inductive
30
FLA Resistive
40
Coil Voltage
480
Lug or Screw Terminal
Box Lug/Quad QC
Standards
UL
MFG NameMFG #
Siemens/Furnas45EG20AHL

Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.
