Home  >  HVAC/R Components  >  Fan Blades  >  Accessories  > Variable Pitch Pulleys

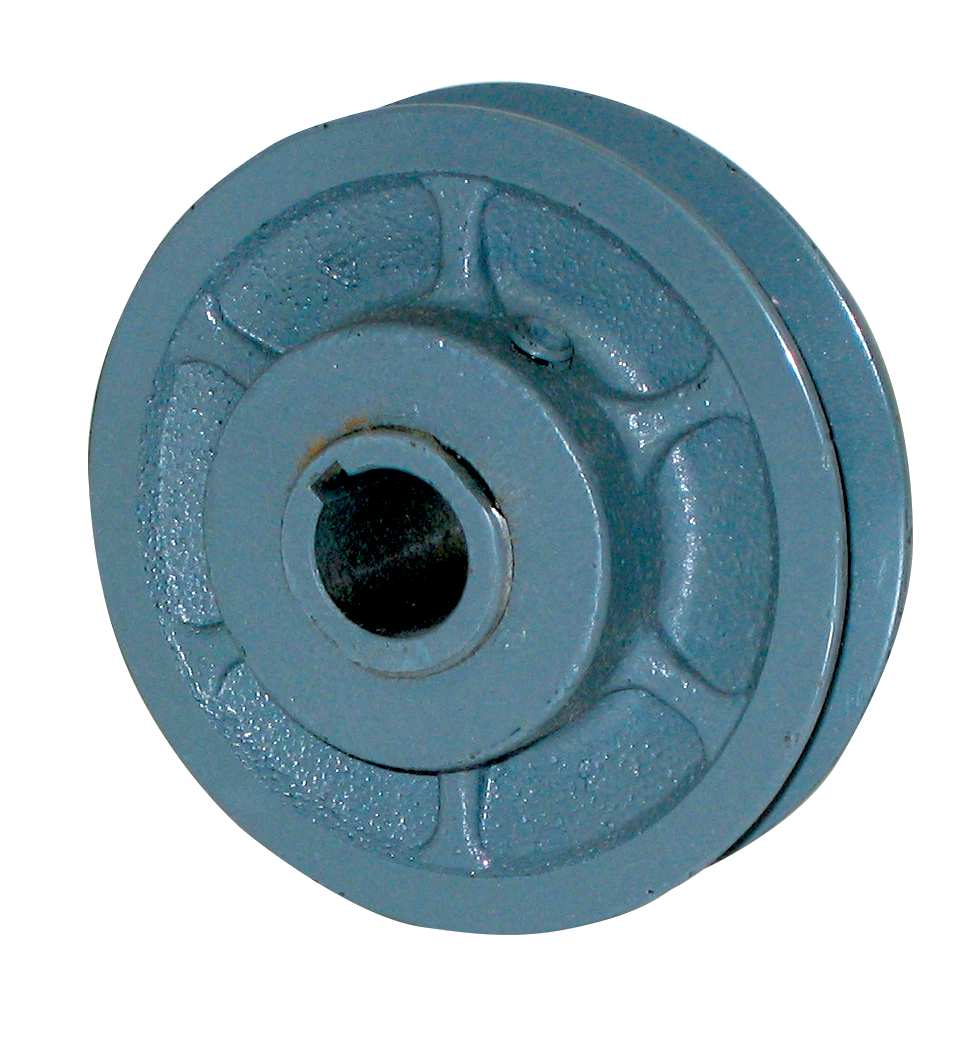

Variable Pitch Pulleys

CSA 03561 2.5" Dia 1/2" Bore
Diameter (in.) 2.5 Type Variable Pitch Pulley Use With V-Belt 3L Bore Diameter (in.) 1/2 Length (in.) 17/32 to 25/32 No. of Grooves 1 Face Width (in.) 17/32 to 25/32 Function 1/2 Keyway Size Cast Iron Length thru Bore (in.) 1.6875 Composition Cast Iron Min. Pitch Dia. (in.) 2.4 Max. Pitch Dia (in.) 2.5
Item #: 40829
Variable Pitch Pull
  • Prevents slippage and misalignment
  • Use with V-belts to transfer motion from motors to belts, fans, and pumps
  • Provides maximum friction and torque

    • Fan blade Accessories

    Diameter (in.)
    2.5
    Type
    Variable Pitch Pulley
    Use With
    V-Belt 3L
    Bore Diameter (in.)
    1/2
    Length (in.)
    17/32 to 25/32
    No. of Grooves
    1
    Face Width (in.)
    17/32 to 25/32
    Function
    1/2
    Keyway Size
    Cast Iron
    Length thru Bore (in.)
    1.6875
    Composition
    Cast Iron
    Min. Pitch Dia. (in.)
    2.4
    Max. Pitch Dia (in.)
    2.5
