> 1/8HP 115V 1725 RPM
1/8HP 115V 1725 RPM

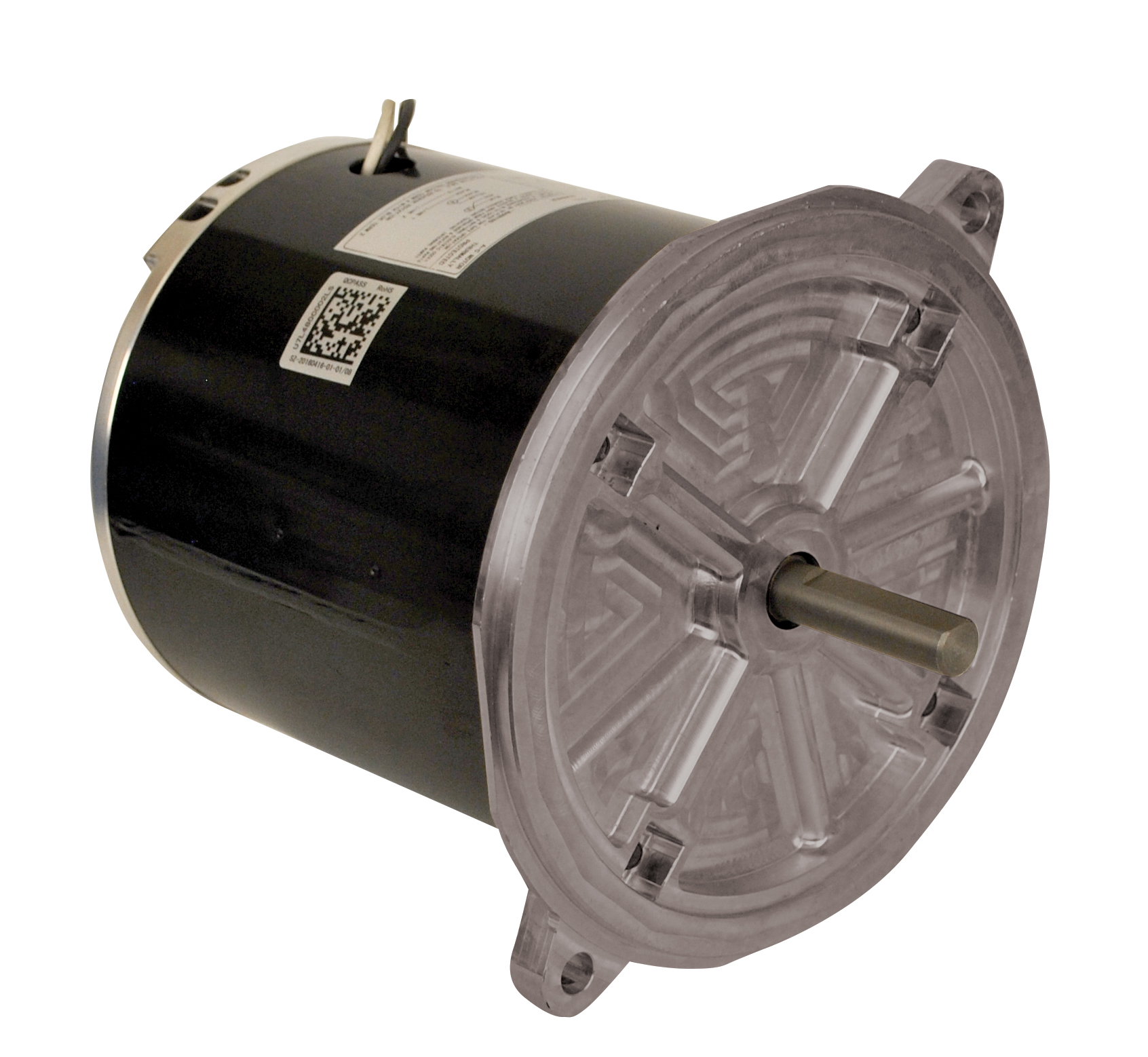

OIL BURNER MOTOR
Motor Type
Split Phase
Enclosure
TENV
H.P. (Max.)
1/8
Voltage
115
Speeds
1
Hz
60
Rotation
REV
RPM Range
1725
NEMA Frame Size
48N
Phase
Single
Standards
cULus
FLA
2.7
Mount
Two bolt direct mounting
Bearing
Ball
Shaft Length Inches
1.75
Shaft Dia Inches
1/2
Thermal Protection
Manual Reset
Ambient Deg C
40
Ins. Class
Class B
Capacitor Included
No
Item #:
30600
Motors
Motor Type
Split Phase
Enclosure
TENV
H.P. (Max.)
1/8
Voltage
115
Speeds
1
Hz
60
Rotation
REV
RPM Range
1725
NEMA Frame Size
48N
Phase
Single
Standards
cULus
FLA
2.7
Mount
Two bolt direct mounting
Bearing
Ball
Shaft Length Inches
1.75
Shaft Dia Inches
1/2
Thermal Protection
Manual Reset
Ambient Deg C
40
Ins. Class
Class B
Capacitor Included
No
MFG Name | MFG # |
Century/AO Smith | EL2005 |
Marathon | O600 |
US Motors/Emerson | 3196 |
Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.
