Home  >  JARD  >  JARD Motors  >  JARD Condenser Fan  > 1/6HP 208-230V 825RPM 70C CF

1/6HP 208-230V 825RPM 70C CF

No. of Poles 8 Motor Type PSC Enclosure Drip Proof HP (Max.) 1/6 Voltage 208-230 Mounting Belly Band, Extended Clampbolts Speeds 1 Hz 60 Rotation REV RPM Range 825 NEMA Frame Size 48 Phase Single Standards CUL FLA 1.0 Bearing Ball Lead Length (in.) 48 Thermal Protection Auto Ambient Deg C 70 Ins. Class B Shaft Dia. (in.) 1/2 Capacitor Included No Shaft Length (in.) 6.5 Capacitor Rating 5/370 Service Factor 1.0 Duty Continuous
Item #: 26403
1/6HP 208-230V 825R

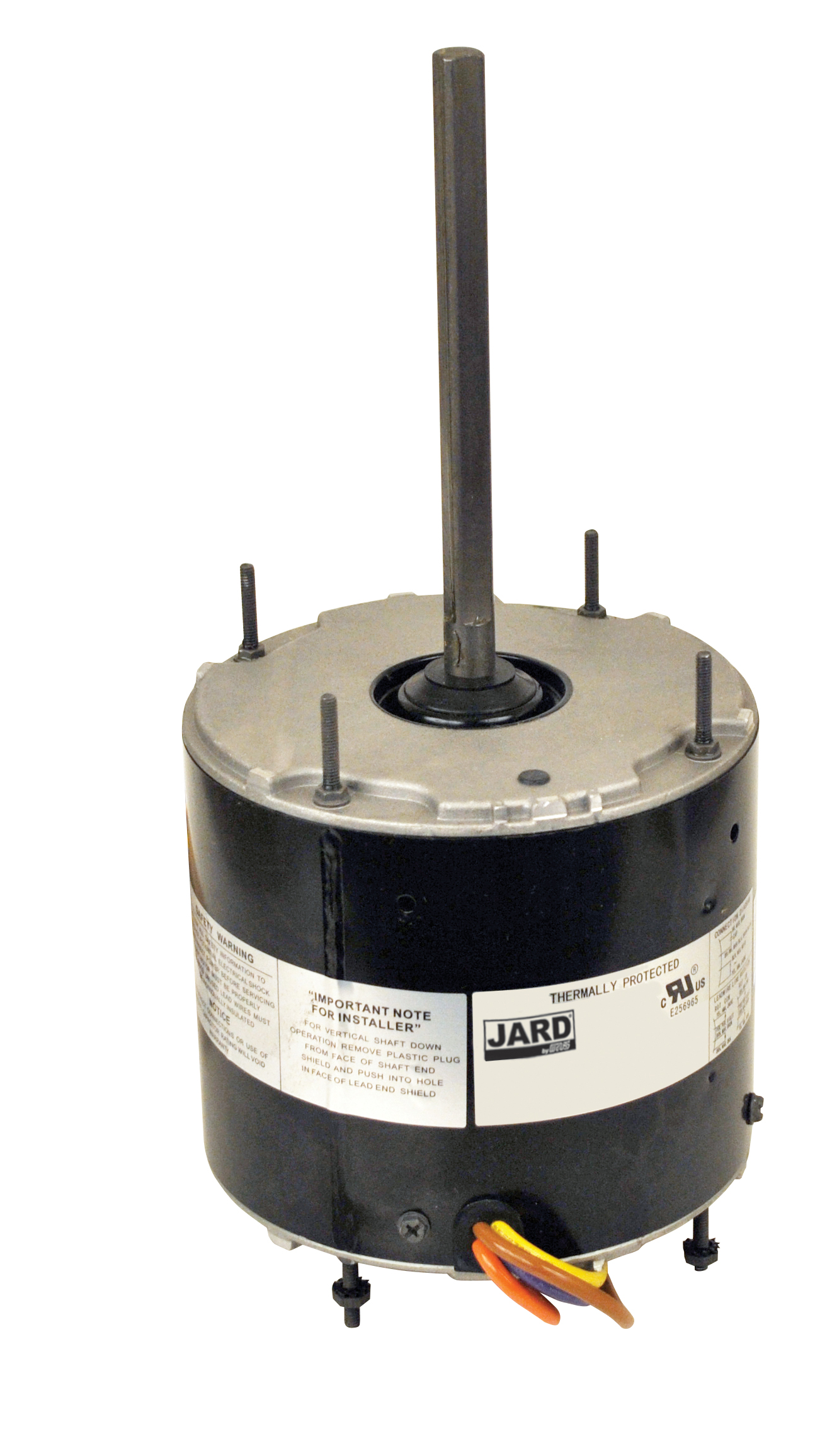

JARD 70C Condenser Fan Motor

  • Ball Bearing, Reversible
  • Vertical Shaft Up or Shaft Down
  • Weep hole in each end shield
  • Rheem mounting holes w/screws installed
  • Water slinger on shaft
  • Double full flatted shaft
  • Thermally Protected
  • Extended Studs/Belly Band/Mounting Holes

    • Motors

    No. of Poles
    8
    Motor Type
    PSC
    Enclosure
    Drip Proof
    HP (Max.)
    1/6
    Voltage
    208-230
    Mounting
    Belly Band, Extended Clampbolts
    Speeds
    1
    Hz
    60
    Rotation
    REV
    RPM Range
    825
    NEMA Frame Size
    48
    Phase
    Single
    Standards
    CUL
    FLA
    1.0
    Bearing
    Ball
    Lead Length (in.)
    48
    Thermal Protection
    Auto
    Ambient Deg C
    70
    Ins. Class
    B
    Shaft Dia. (in.)
    1/2
    Capacitor Included
    No
    Shaft Length (in.)
    6.5
    Capacitor Rating
    5/370
    Service Factor
    1.0
    Duty
    Continuous
    MFG NameMFG #
    EconomasterEM3403
    Packard60825
    US Motors/Emerson1873

    Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.

    ©MOTORS & ARMATURES, INC.
    MFG NameMFG #
    MARS20403
