Home
>
Motors
>
HVAC
>
Condenser Fan
> 1/2HP 1075RPM 460V CF MTR

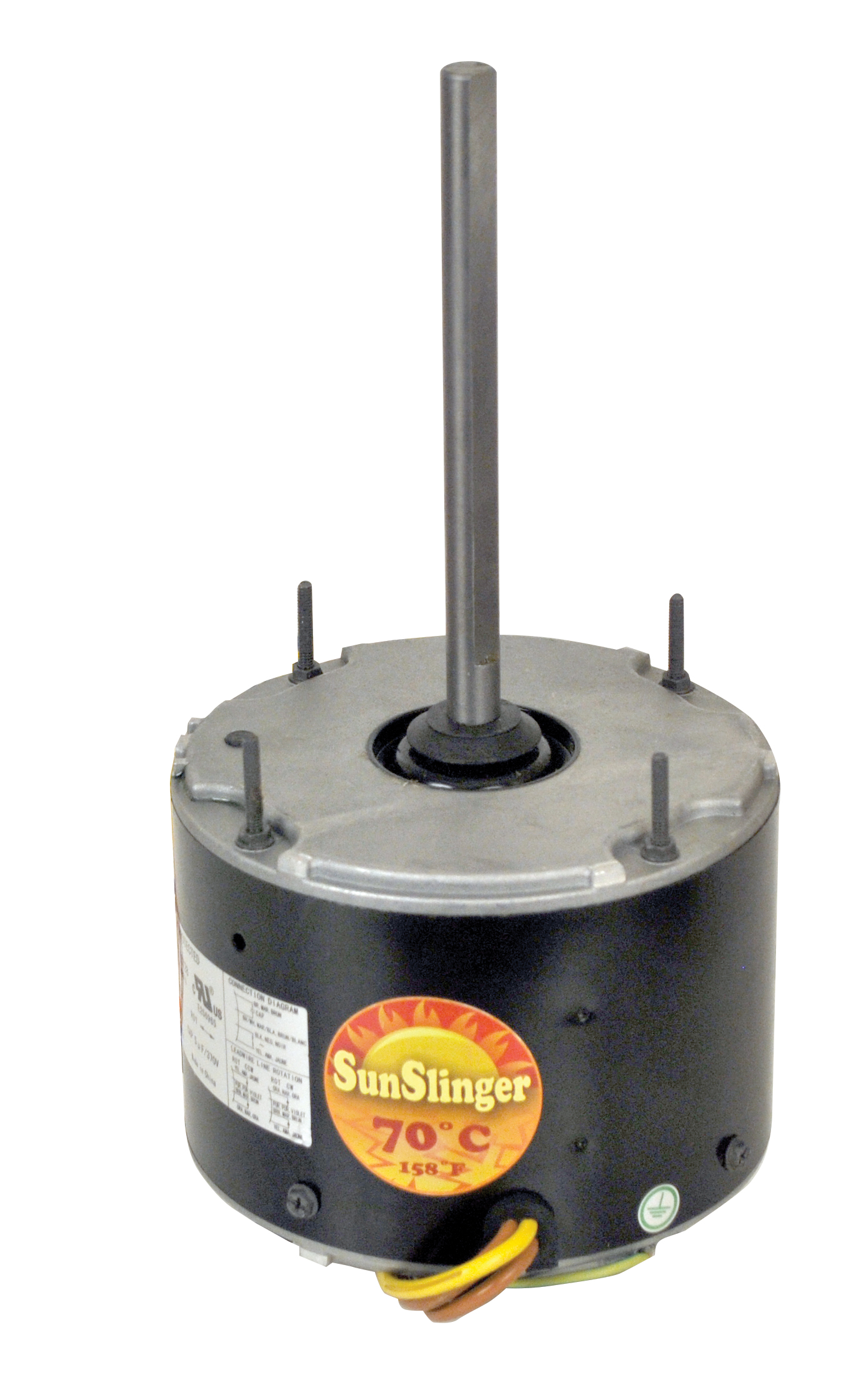

1/2HP 1075RPM 460V CF MTR
Motor Type
PSC
Enclosure
TEAO
H.P. (Max.)
1/2
Voltage
460
Speeds
1
Hz
60
Rotation
CW/CCW
RPM Range
1075
NEMA Frame Size
48
Phase
Single
Standards
UL
FLA
1.3
Mount
Band/Stud/Hole
Bearing
Ball
Shaft Length Inches
6.5
Shaft Dia Inches
0.5
Thermal Protection
Auto
Ambient Deg C
-10C-+70C
Ins. Class
F
Capacitor Included
No
Capacitor Rating
10/440
Item #:
20848
Motors
Motor Type
PSC
Enclosure
TEAO
H.P. (Max.)
1/2
Voltage
460
Speeds
1
Hz
60
Rotation
CW/CCW
RPM Range
1075
NEMA Frame Size
48
Phase
Single
Standards
UL
FLA
1.3
Mount
Band/Stud/Hole
Bearing
Ball
Shaft Length Inches
6.5
Shaft Dia Inches
0.5
Thermal Protection
Auto
Ambient Deg C
-10C-+70C
Ins. Class
F
Capacitor Included
No
Capacitor Rating
10/440
| MFG Name | MFG # |
| Century/AO Smith | FE1056S |
| US Motors/Emerson | 3738H |
| Fasco | D802 |
| GE/Genteq | 3738HS |
| Rheem/Protech | 51-20929-01 |
| ROTOM | R31718 |
| Diversitech/ Wagner | WG840738HT |
| York/Source 3 | S1-FHM3738HT |
Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.
