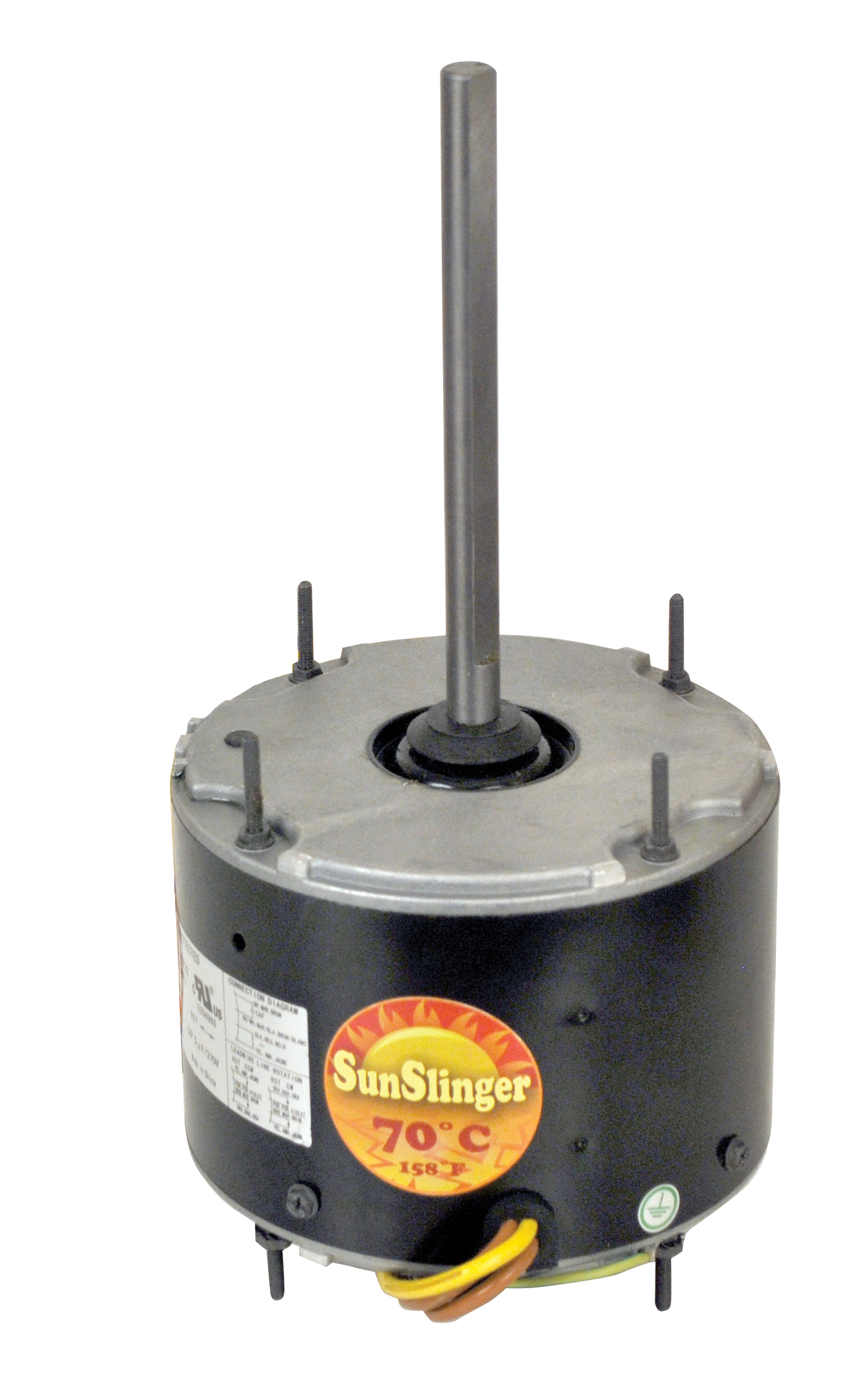

1/6HP 1075RPM 460V CF MTR
Motor Type
PSC
Enclosure
TEAO
H.P. (Max.)
1/6
Voltage
460
Speeds
1
Hz
60
Rotation
REV
RPM Range
1075
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
0.48
Mount
Thru Bolt/All Angle
Bearing
Ball
Shaft Length Inches
6.5
Shaft Dia Inches
1/2
Thermal Protection
Auto
Ambient Deg C
70
Ins. Class
Class F
Capacitor Included
No
Capacitor Rating
5/440
Item #:
20835
Motors
Motor Type
PSC
Enclosure
TEAO
H.P. (Max.)
1/6
Voltage
460
Speeds
1
Hz
60
Rotation
REV
RPM Range
1075
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
0.48
Mount
Thru Bolt/All Angle
Bearing
Ball
Shaft Length Inches
6.5
Shaft Dia Inches
1/2
Thermal Protection
Auto
Ambient Deg C
70
Ins. Class
Class F
Capacitor Included
No
Capacitor Rating
5/440
