Home
>
Motors
>
HVAC
>
Condenser Fan
> 1/2HP 208-230V 825 80C CF MTR

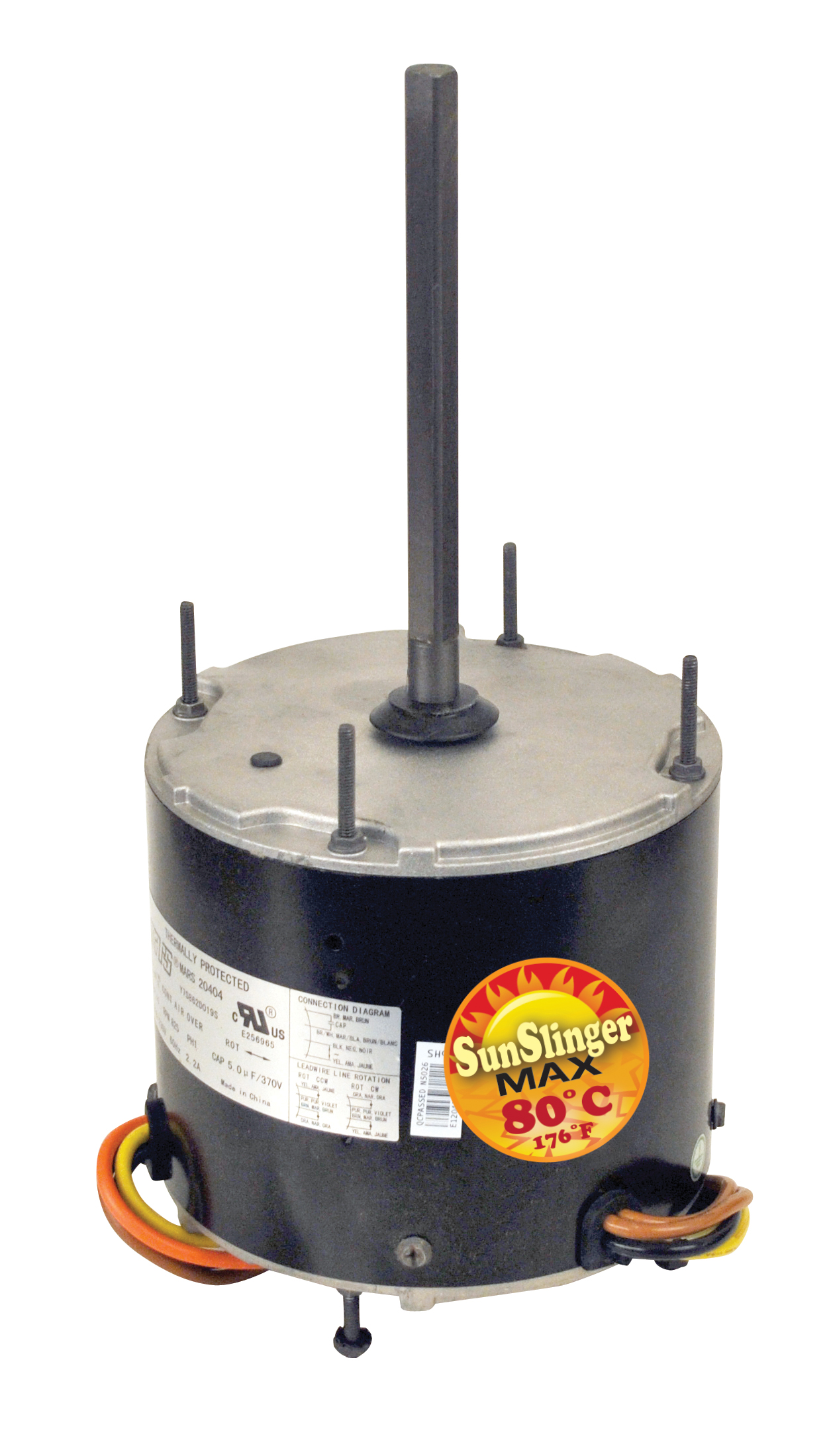

1/2HP 208-230V 825 80C CF MTR
Motor Type
PSC
Enclosure
TEAO
H.P. (Max.)
1/2
Voltage
208-230
Speeds
1
Hz
60
Rotation
REV
RPM Range
825
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
2.8
Mount
Thru Bolt or Belly Band
Bearing
Ball
Shaft Length Inches
7
Shaft Dia Inches
1/2
Thermal Protection
Auto
Ambient Deg C
80
Ins. Class
Class F
Capacitor Included
No
Capacitor Rating
12.5/370
Item #:
20796
