Home  >  HVAC/R Components  >  Capacitors  >  MARS Blue Box Start Capacitor  > 145-175 MFD 330V

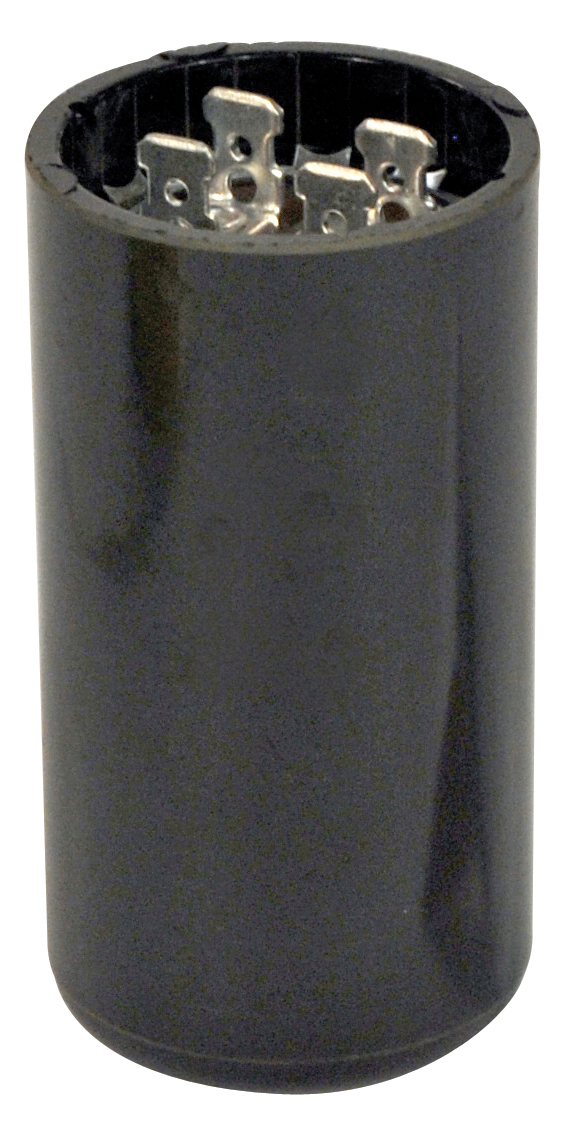

145-175 MFD 330V

Capacitor Type Motor Start Shape Round MFD Rating 145-175 Voltage 330 Hz 50/60 Case Height (in.) 4.38 Width (in.) 2.06 Overall Height (in.) 4.38 Temp. Range -40°C to +65°C Starts Per Hour 15 Terminals 2 Composition Phenolic
Item #: 11066
145-175 MFD 330V

MARS Blue Box Start Capacitors

  • Offers the widest selection of ratings in the industry
  • Hermetically Sealed black Bakelite case permanently protects the capacitor from oil, dirt, grease or moisture
  • Smallest dimensions for general replacement
  • UL & CUL

Capacitors

Capacitor Type
Motor Start
Shape
Round
MFD Rating
145-175
Voltage
330
Hz
50/60
Case Height (in.)
4.38
Width (in.)
2.06
Overall Height (in.)
4.38
Temp. Range
-40°C to +65°C
Starts Per Hour
15
Terminals
2
Composition
Phenolic
