Home
>
Motors
>
ECM
>
HVAC
> 1/5-1/2HP AZURE FOR X13
1/5-1/2HP AZURE FOR X13
Motor Type
ECM
Enclosure
OAO
H.P. (Max.)
1/2
Voltage
120/240
Multi-Rated H.P.
1/5-1/2
Speeds
5
Hz
50/60
Rotation
REV+FWD
RPM Range
Constant Torque
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
6.4/3.8
Mount
Belly Band
Bearing
Ball
Shaft Length Inches
4.94
Shaft Dia Inches
1/2
Thermal Protection
REDUNDANT Electronic Control CIRCUITS
Ambient Deg C
55
Ins. Class
B
Capacitor Included
No
Replaces
X13, Ensite, Endura
Item #:
10858

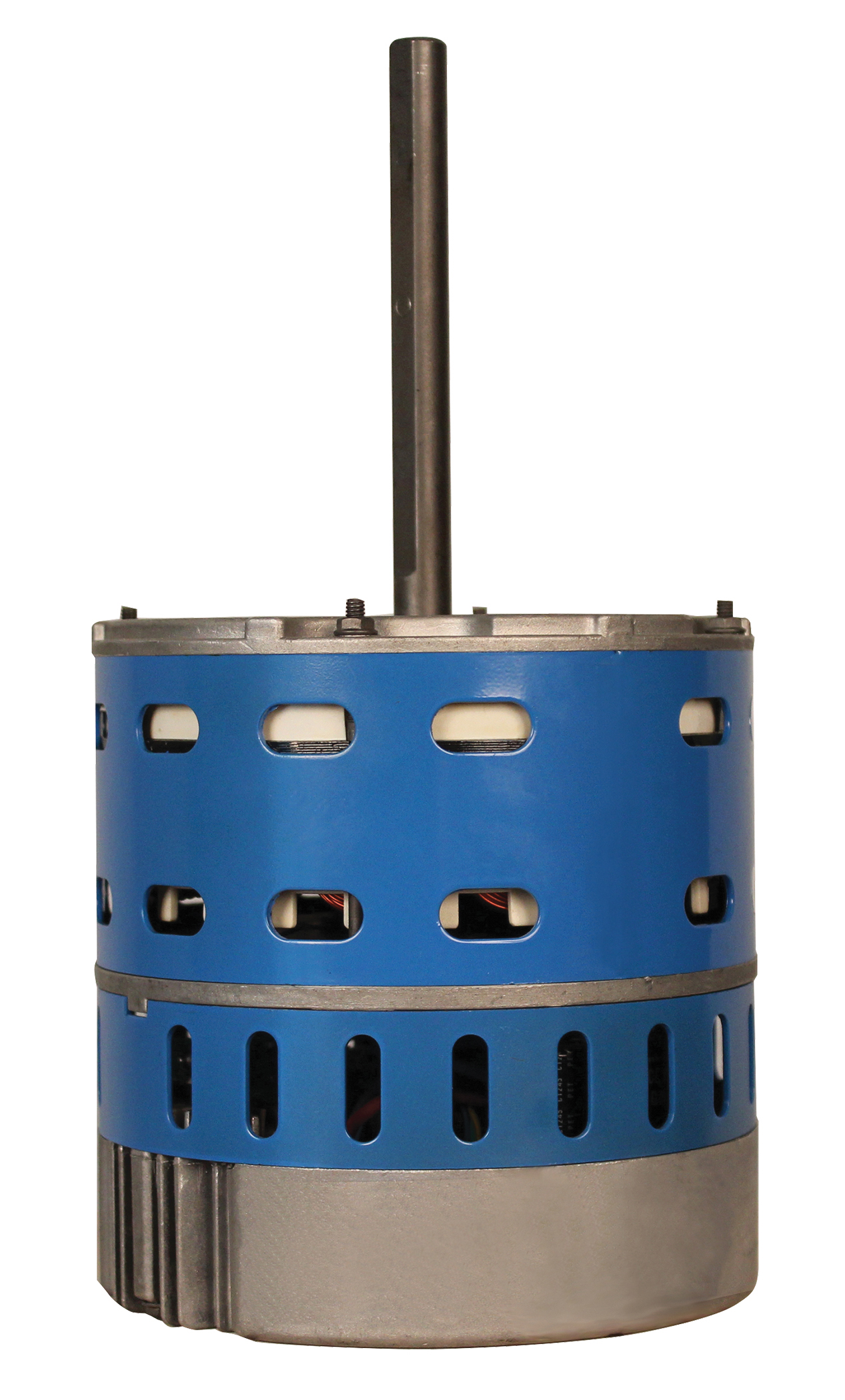

Azure ECM Direct Drive
- Bluetooth Control -Free app (AZURE ECM) with Intuitive Drop down menus
- Azure connects directly to OEM harnesses; additional module or adapter is included
- The app allows optimization of airflow even if ductwork is not optimal
- 4 speeds plus 625 RPM constant fan mode
- High efficiency 85%
- Replaces A LOT of motors and Saves time and money!
- Any FER 2019 OEM Constant Torque Motor, Genteq®X13®, Endura®Pro, Ensite®, Evergreen®, US Motors®SelecTech®, EZ13®, Broad Ocean Digi-Motor
Motors
Motor Type
ECM
Enclosure
OAO
H.P. (Max.)
1/2
Voltage
120/240
Multi-Rated H.P.
1/5-1/2
Speeds
5
Hz
50/60
Rotation
REV+FWD
RPM Range
Constant Torque
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
6.4/3.8
Mount
Belly Band
Bearing
Ball
Shaft Length Inches
4.94
Shaft Dia Inches
1/2
Thermal Protection
REDUNDANT Electronic Control CIRCUITS
Ambient Deg C
55
Ins. Class
B
Capacitor Included
No
Replaces
X13, Ensite, Endura
