Home  >  Motors  >  HVAC  >  Direct Drive  > FURN BLWR 1/2HP 115V T FLEX

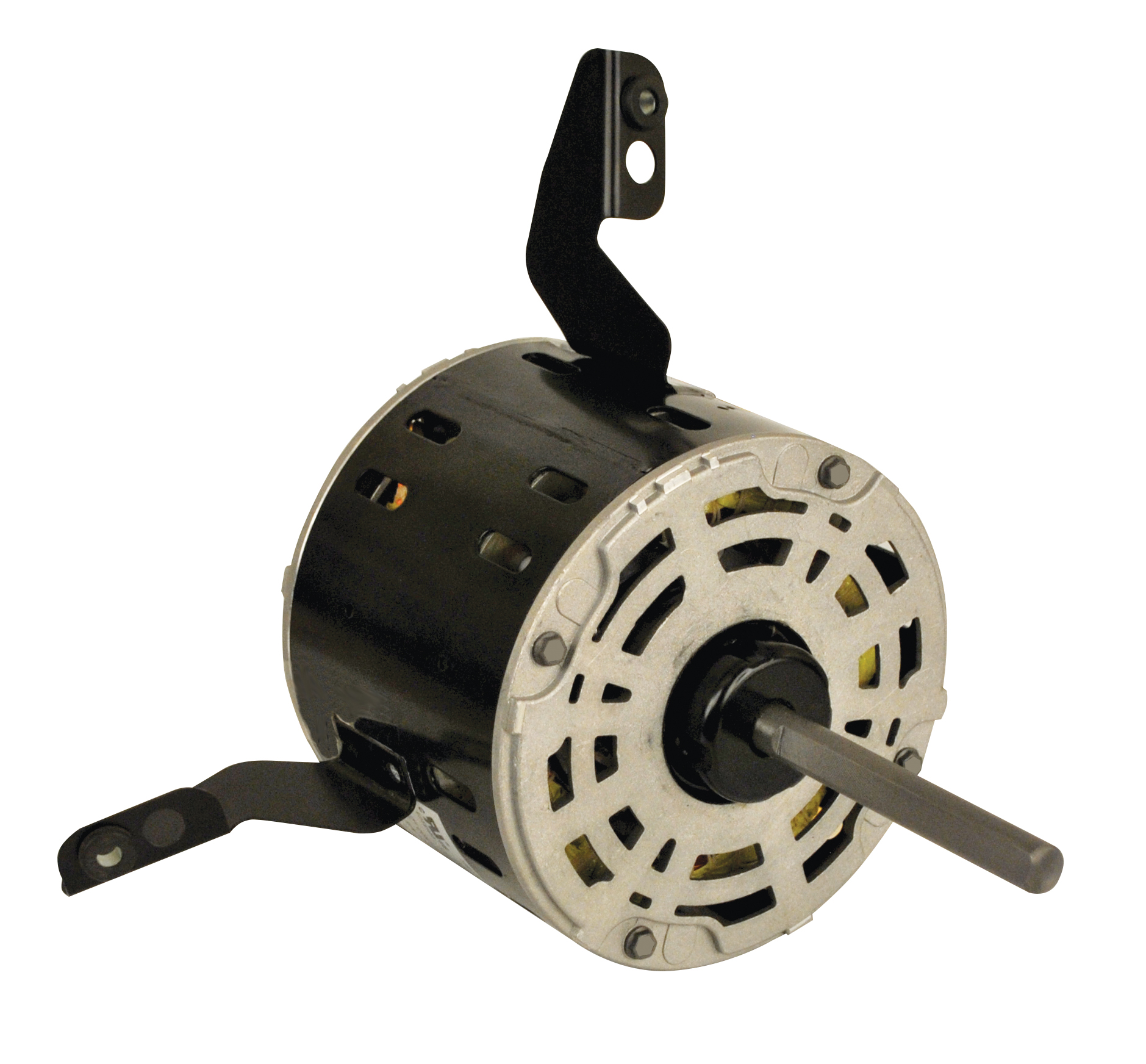

FURN BLWR 1/2HP 115V T FLEX

No. of Poles 6 Motor Type PSC Enclosure OAO HP (Max.) 1/2 Voltage 115 Mounting Torsion Flex Mounting Speeds 3 Hz 60 Rotation REV RPM Range 1075 NEMA Frame Size 48 Phase Single Standards CUL FLA 7.5 Bearing Sleeve Lead Length (in.) 36 Thermal Protection Auto Ambient Deg C 60 Ins. Class B Shaft Dia. (in.) 1/2 Capacitor Included No Shaft Length (in.) 4.5 Capacitor Rating 10/370 Service Factor 1.0 Duty Continuous
Item #: 10687
FURN BLWR 1/2HP 115

MARS 48 Frame Torsion Flex Mount Motors

  • Unique torsion flex mounting speeds installation
  • Less vibration quieter operation
  • 3 Speed, Single Phase
  • Sleeve Bearing
  • Capacitor required: 10 MFD 370V
  • Thermal protected, air over
  • 36 in. Leads

    • Motors

    No. of Poles
    6
    Motor Type
    PSC
    Enclosure
    OAO
    HP (Max.)
    1/2
    Voltage
    115
    Mounting
    Torsion Flex Mounting
    Speeds
    3
    Hz
    60
    Rotation
    REV
    RPM Range
    1075
    NEMA Frame Size
    48
    Phase
    Single
    Standards
    CUL
    FLA
    7.5
    Bearing
    Sleeve
    Lead Length (in.)
    36
    Thermal Protection
    Auto
    Ambient Deg C
    60
    Ins. Class
    B
    Shaft Dia. (in.)
    1/2
    Capacitor Included
    No
    Shaft Length (in.)
    4.5
    Capacitor Rating
    10/370
    Service Factor
    1.0
    Duty
    Continuous
    MFG NameMFG #
    Century/AO SmithFML1056
    FascoD1732
    GE/Genteq3787
    ROTOMDD-036, 00-R42219
    US Motors/Emerson3787

    Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.
