Home  >  Motors  >  HVAC  >  Direct Drive  > 5.6",1/3-1/4-1/5HP,208-230V

5.6",1/3-1/4-1/5HP,208-230V

No. of Poles 6 Motor Type PSC Enclosure Open Drip Proof HP (Max.) 1/3 Voltage 208-230 Mounting Extended Studs/Belly Band/Resilient Ring Speeds 3 Hz 60 Rotation REV Multi-Rated HP 1/3 - 1/4 - 1/5 RPM Range 1075 NEMA Frame Size 48 Phase Single Standards UR/CSA FLA 2.9, 2.2, 1.7 Bearing Sleeve Lead Length (in.) 26 Thermal Protection Auto Ambient Deg C 40 Ins. Class B Shaft Dia. (in.) 1/2 Capacitor Included No Shaft Length (in.) 6 Capacitor Rating 5/370 Service Factor 1.0 Duty Continuous
Item #: D923
5.6

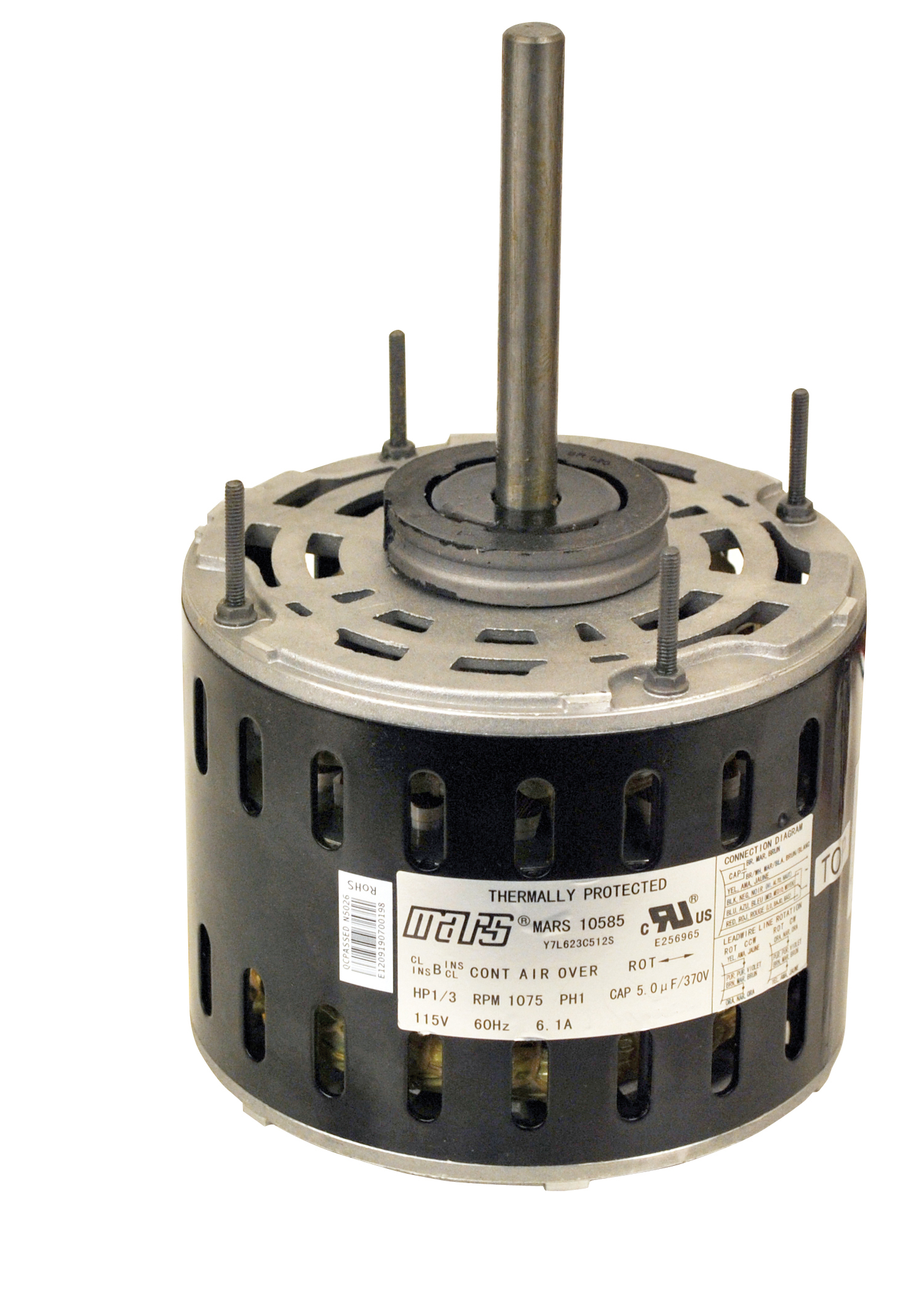

Direct Drive Fan and Blower Motor

  • 5.6" Diameter - 48 Frame
  • Thermally Protected
  • Open SE & LE, Shell Half Vented, Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 26" Leads
  • Extended Studs/Belly Band/Resilient Ring

    • Motors

    No. of Poles
    6
    Motor Type
    PSC
    Enclosure
    Open Drip Proof
    HP (Max.)
    1/3
    Voltage
    208-230
    Mounting
    Extended Studs/Belly Band/Resilient Ring
    Speeds
    3
    Hz
    60
    Rotation
    REV
    Multi-Rated HP
    1/3 - 1/4 - 1/5
    RPM Range
    1075
    NEMA Frame Size
    48
    Phase
    Single
    Standards
    UR/CSA
    FLA
    2.9, 2.2, 1.7
    Bearing
    Sleeve
    Lead Length (in.)
    26
    Thermal Protection
    Auto
    Ambient Deg C
    40
    Ins. Class
    B
    Shaft Dia. (in.)
    1/2
    Capacitor Included
    No
    Shaft Length (in.)
    6
    Capacitor Rating
    5/370
    Service Factor
    1.0
    Duty
    Continuous
