Home
>
Motors
>
HVAC
>
OEM Replacement
> 1/4HP 208-230 CW 1625RPM

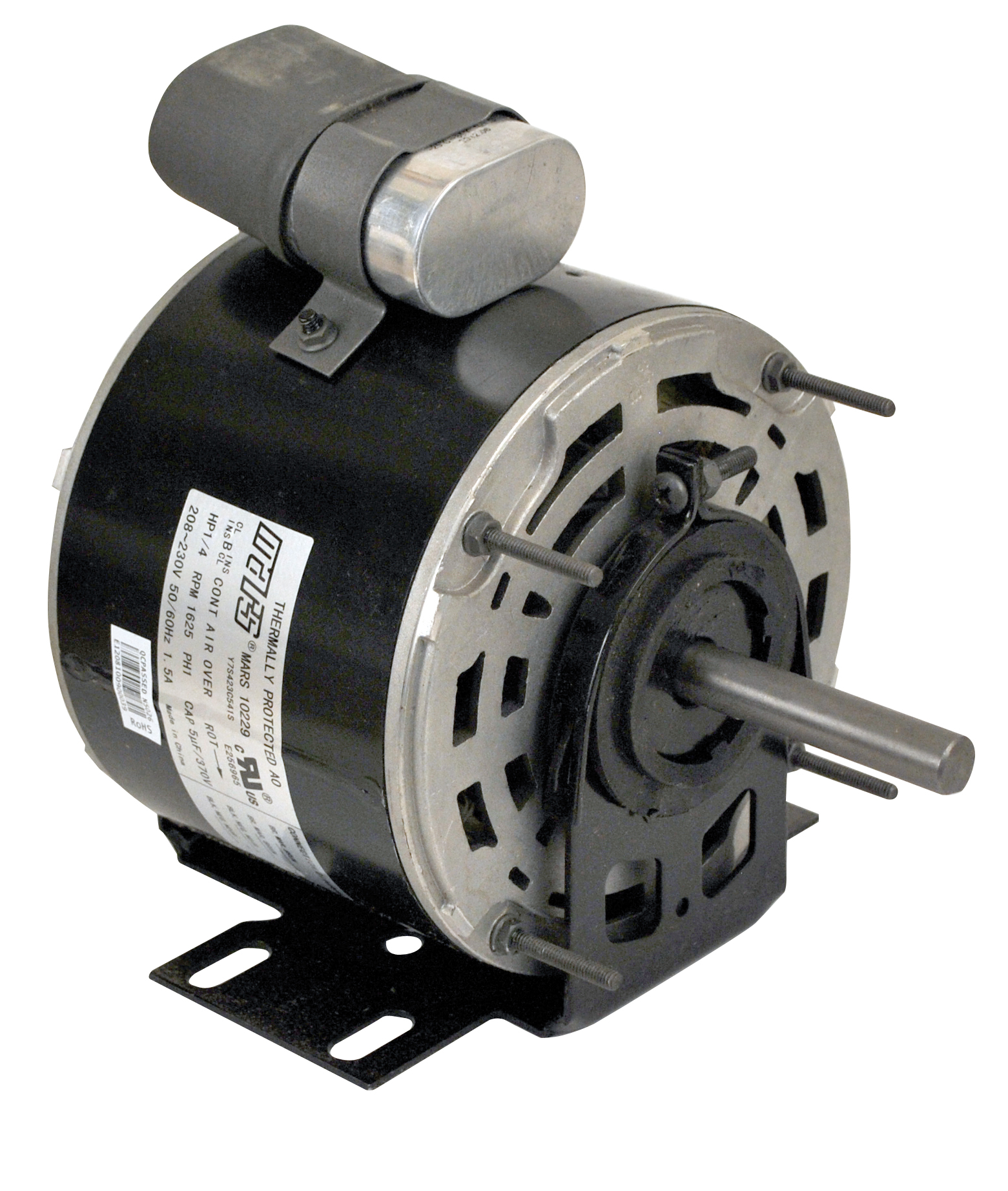

1/4HP 208-230 CW 1625RPM
Motor Type
PSC
Enclosure
OAO
H.P. (Max.)
1/4
Voltage
208-230
Speeds
1
Hz
50/60
Rotation
CW
RPM Range
1625
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
1.5
Mount
Thru Bolt/Bracket Mounting
Bearing
Sleeve
Shaft Length Inches
3
Shaft Dia Inches
1/2
Thermal Protection
Auto
Ambient Deg C
60
Ins. Class
Class B
Capacitor Included
Yes
Capacitor Rating
5/370
Replaces
050-0250-00, 950-0250-00, 03242, 6129, 40250, OCP0
Item #:
10229
Motors
Motor Type
PSC
Enclosure
OAO
H.P. (Max.)
1/4
Voltage
208-230
Speeds
1
Hz
50/60
Rotation
CW
RPM Range
1625
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
1.5
Mount
Thru Bolt/Bracket Mounting
Bearing
Sleeve
Shaft Length Inches
3
Shaft Dia Inches
1/2
Thermal Protection
Auto
Ambient Deg C
60
Ins. Class
Class B
Capacitor Included
Yes
Capacitor Rating
5/370
Replaces
050-0250-00, 950-0250-00, 03242, 6129, 40250, OCP0
MFG Name | MFG # |
Copeland | 050-0250-00 |
Packard | 40250 |
US Motors/Emerson | 6129, K55HXJZJ-3126 |
Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.
