> 9 WATT ECM W/ACCESS

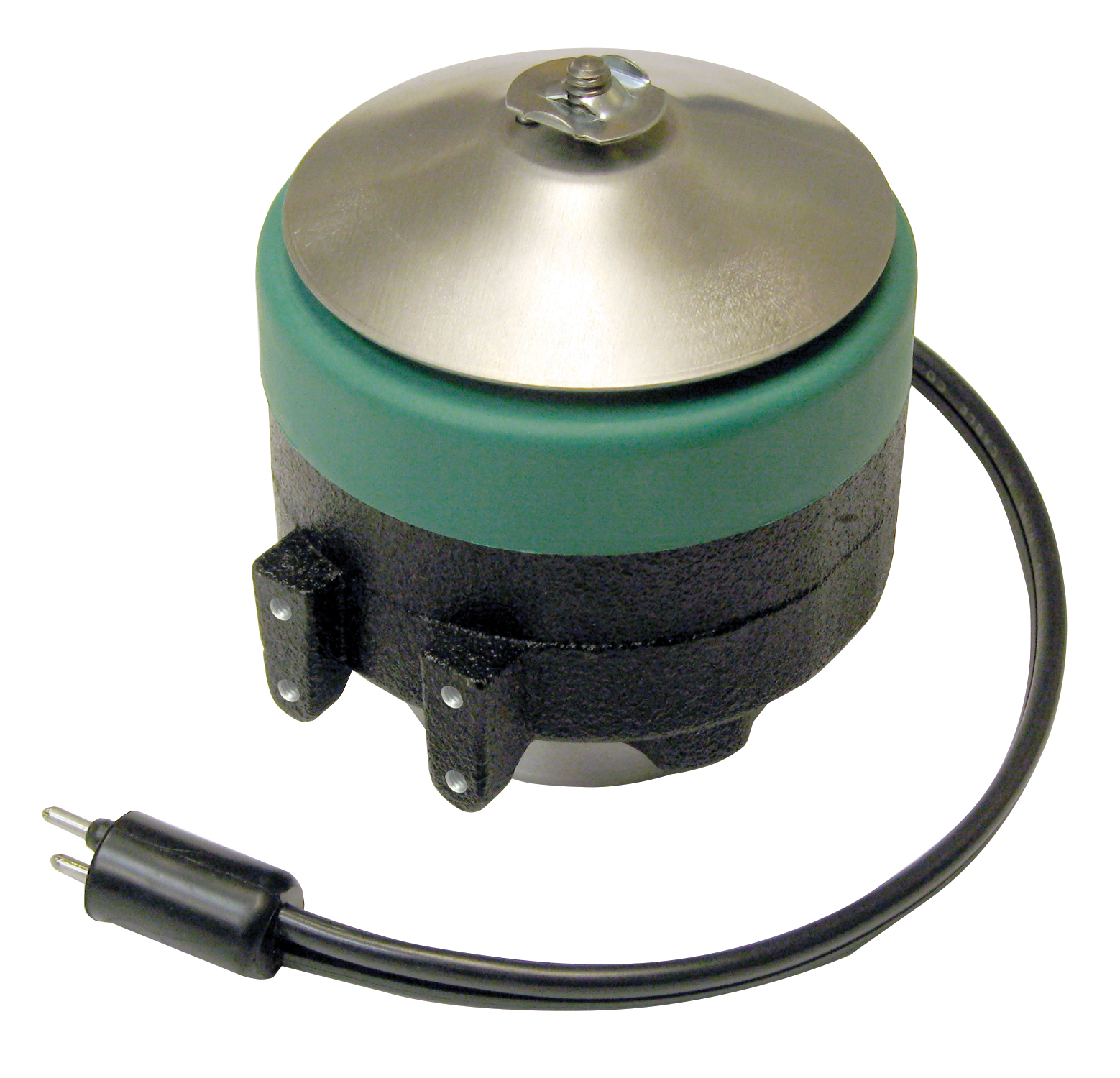

9 WATT ECM W/ACCESS
Motor Type
ECM
Enclosure
TEAO
H.P. (Max.)
9 Watt
Voltage
115
Speeds
1
Hz
60
Rotation
CW
RPM Range
1650
NEMA Frame Size
51
Phase
Single
Standards
UL/CUL
FLA
0.32
Mount
Unit Bearing
Bearing
Cast Iron Unit Bearing
Shaft Length Inches
0.425
Shaft Dia Inches
1/4
Thermal Protection
Yes
Ambient Deg C
40
Ins. Class
Class A
Capacitor Included
No
Capacitor Rating
No
Item #:
05443
