Home
>
Motors
>
ECM
>
Refrigeration
> 1/15 HP 230V CCW 1550RPM

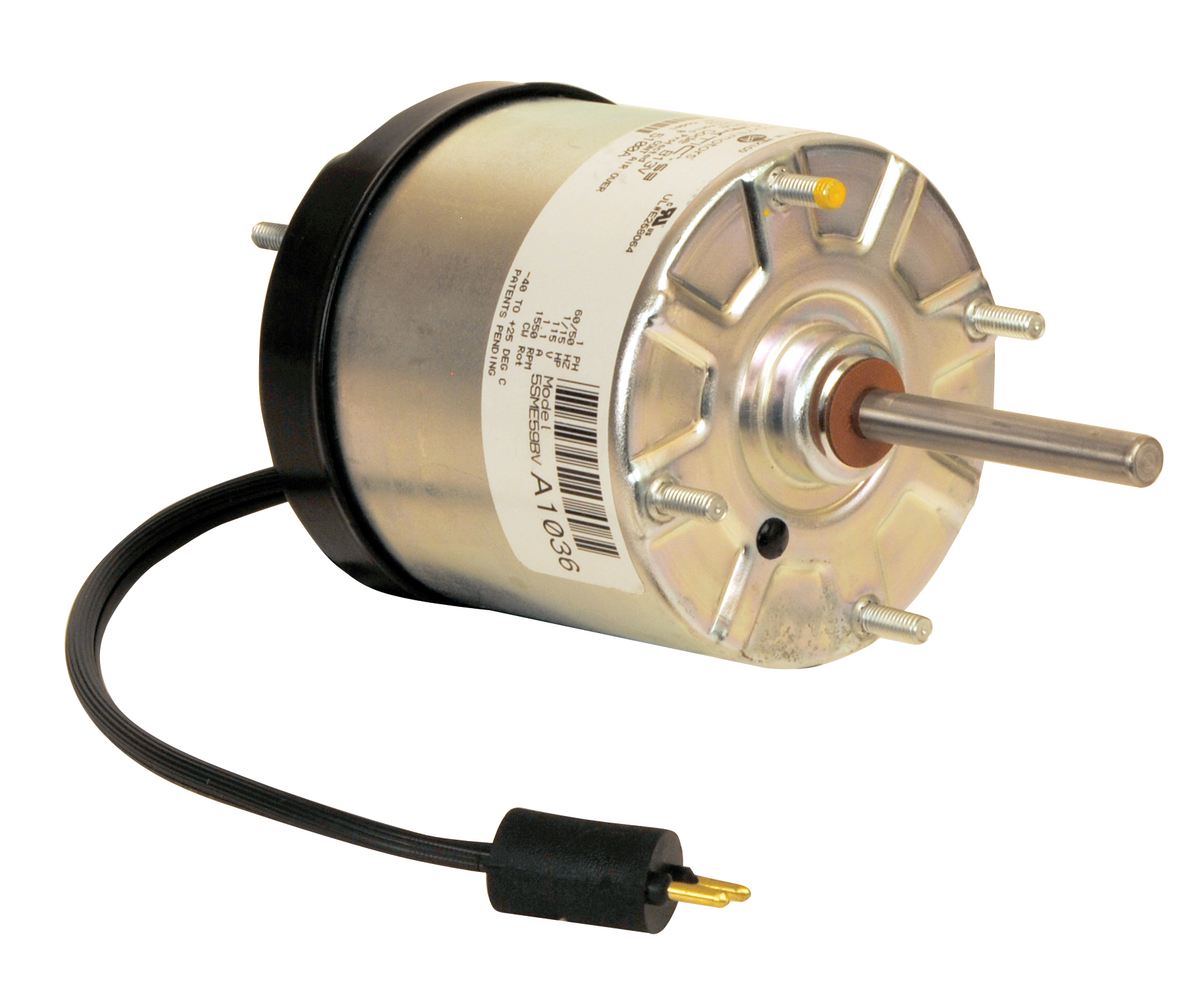

1/15 HP 230V CCW 1550RPM
Motor Type
SME
Enclosure
Closed
H.P. (Max.)
1/15
Voltage
208-230
Speeds
2
Hz
50/60
Rotation
CCW
RPM Range
1550/800
NEMA Frame Size
59
Phase
Single
Standards
UL/CUL
FLA
.63
Bearing
Ball
Shaft Length Inches
2.61
Shaft Dia Inches
5/16
Thermal Protection
Yes
Ins. Class
Class A
Item #:
05205
Motors
Motor Type
SME
Enclosure
Closed
H.P. (Max.)
1/15
Voltage
208-230
Speeds
2
Hz
50/60
Rotation
CCW
RPM Range
1550/800
NEMA Frame Size
59
Phase
Single
Standards
UL/CUL
FLA
.63
Bearing
Ball
Shaft Length Inches
2.61
Shaft Dia Inches
5/16
Thermal Protection
Yes
Ins. Class
Class A
