Home  >  Motors  >  HVAC  >  Direct Drive  > 1/4HP 115V 1075RPM REV ROT

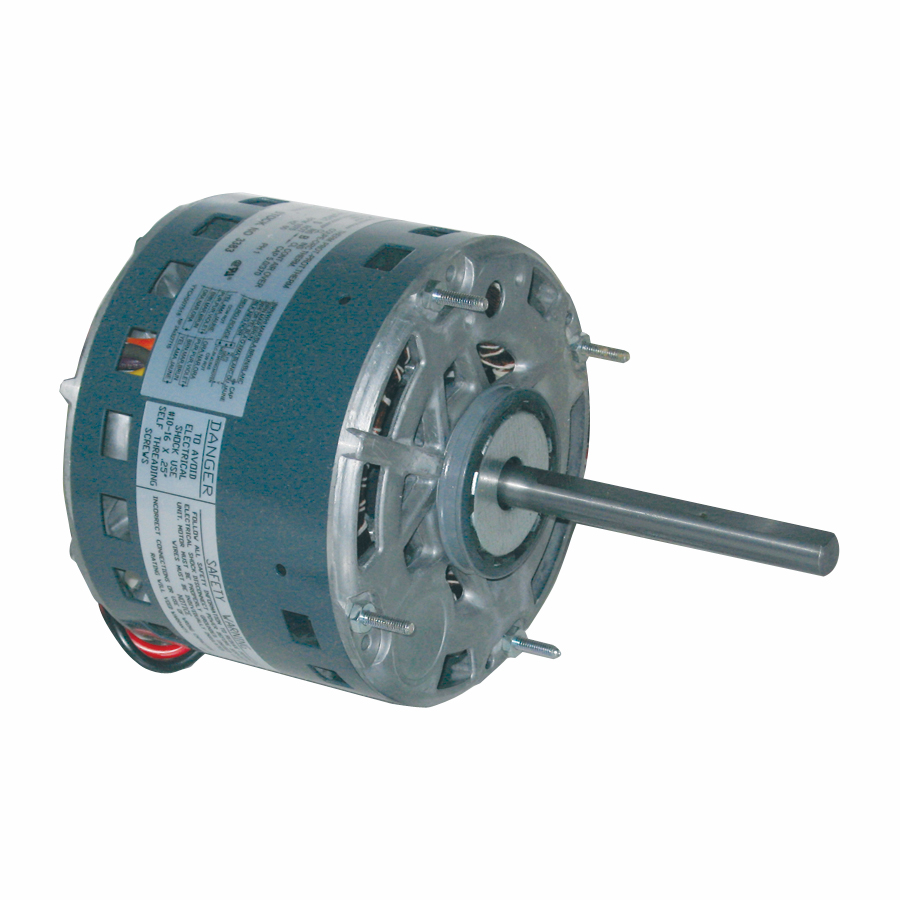

1/4HP 115V 1075RPM REV ROT

No. of Poles 6 Motor Type PSC Enclosure OAO HP (Max.) 1/4 Voltage 115 Mounting Resilient Ring Mounting,/Belly Band Speeds 3 Hz 60 Rotation REV RPM Range 1075 NEMA Frame Size 48 Phase Single Standards UR/CSA FLA 4.2 Bearing Sleeve Lead Length (in.) 26 Thermal Protection Yes Ambient Deg C 40 Ins. Class B Shaft Dia. (in.) 1/2 w/Flat Capacitor Included No Shaft Length (in.) 4.0 Capacitor Rating 5/370 Service Factor 1.0 Duty Continuous
Item #: 03583
1/4HP 115V 1075RPM

Direct Drive Fan & Blower Motor

  • Permanent Split Capacitor (PSC), Capacitor required
  • 26" Leads
  • 1/2" Diameter Shaft with Double Flat
  • Resilient Ring Mounting, Extended Clampbolts

Motors

No. of Poles
6
Motor Type
PSC
Enclosure
OAO
HP (Max.)
1/4
Voltage
115
Mounting
Resilient Ring Mounting,/Belly Band
Speeds
3
Hz
60
Rotation
REV
RPM Range
1075
NEMA Frame Size
48
Phase
Single
Standards
UR/CSA
FLA
4.2
Bearing
Sleeve
Lead Length (in.)
26
Thermal Protection
Yes
Ambient Deg C
40
Ins. Class
B
Shaft Dia. (in.)
1/2 w/Flat
Capacitor Included
No
Shaft Length (in.)
4.0
Capacitor Rating
5/370
Service Factor
1.0
Duty
Continuous
