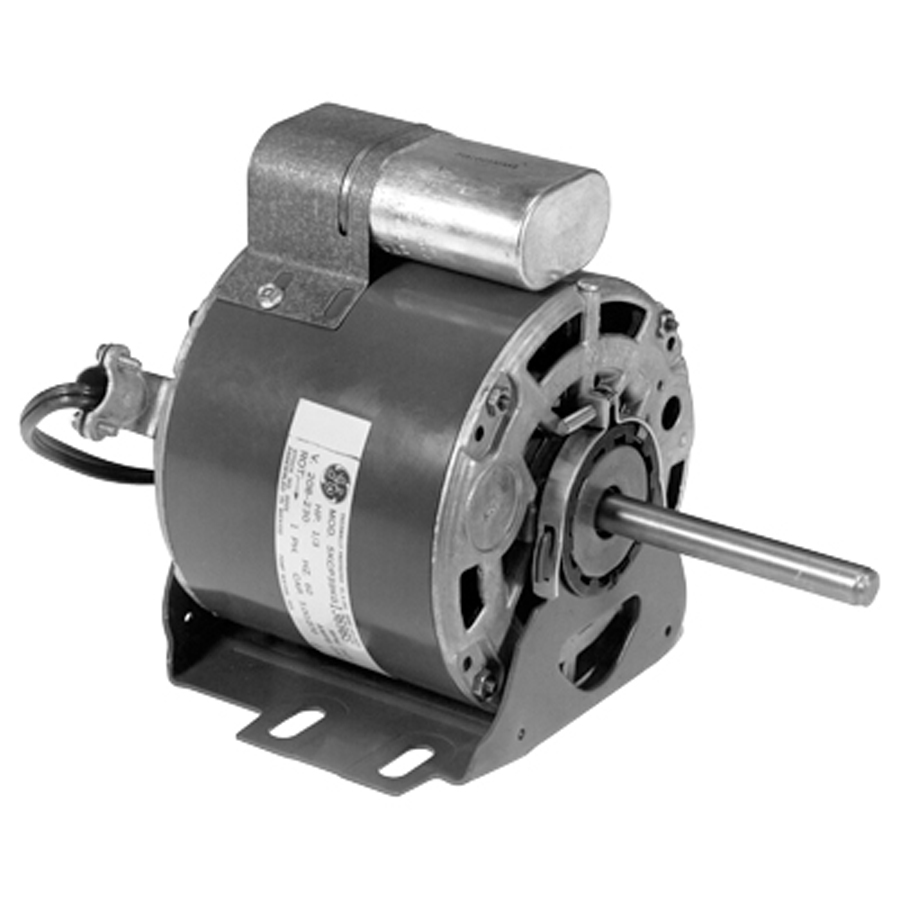

5KCP39KG1369S MOTOR
No. of Poles
4
Motor Type
PSC
Enclosure
TEAO
HP (Max.)
1/3
Voltage
208-230
Mounting
Resilient Base
Speeds
1
Hz
60
Rotation
CW
RPM Range
1625
NEMA Frame Size
48
Phase
Single
Standards
UL/CSA
FLA
3.20
Bearing
Sleeve
Lead Length (in.)
42
Thermal Protection
Yes
Ambient Deg C
40
Ins. Class
B
Shaft Dia. (in.)
1/2 w/Double Flat
Capacitor Included
Yes
Shaft Length (in.)
3.5
Capacitor Rating
4/370
Replaces
Fasco D801; Hill No. PP3955B; Universal 160
Service Factor
1.0
Duty
Continuous
Item #:
03001
OEM Direct Replacement Motor
- PSC, 4 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Resilient Base, 42" Leads
