> 3.3IN,1/12-1/15-1/20HP,115/230
3.3IN,1/12-1/15-1/20HP,115/230
Motor Type
PSC
Enclosure
OAO
HP (Max.)
1/12
Voltage
115/230
Mounting
Thru Bolt
Speeds
1
Hz
60
Rotation
REV
Multi-Rated HP
1/12,1/15,1/20
RPM Range
1550
NEMA Frame Size
3.3 Stud
Phase
Single
Standards
CUL
FLA
1.1
Bearing
Sleeve
Lead Length (in.)
19
Thermal Protection
Auto
Ambient Deg C
60
Ins. Class
B
Shaft Dia. (in.)
5/16
Capacitor Included
Yes
Shaft Length (in.)
3.00
Capacitor Rating
7.5/370
Item #:
01127

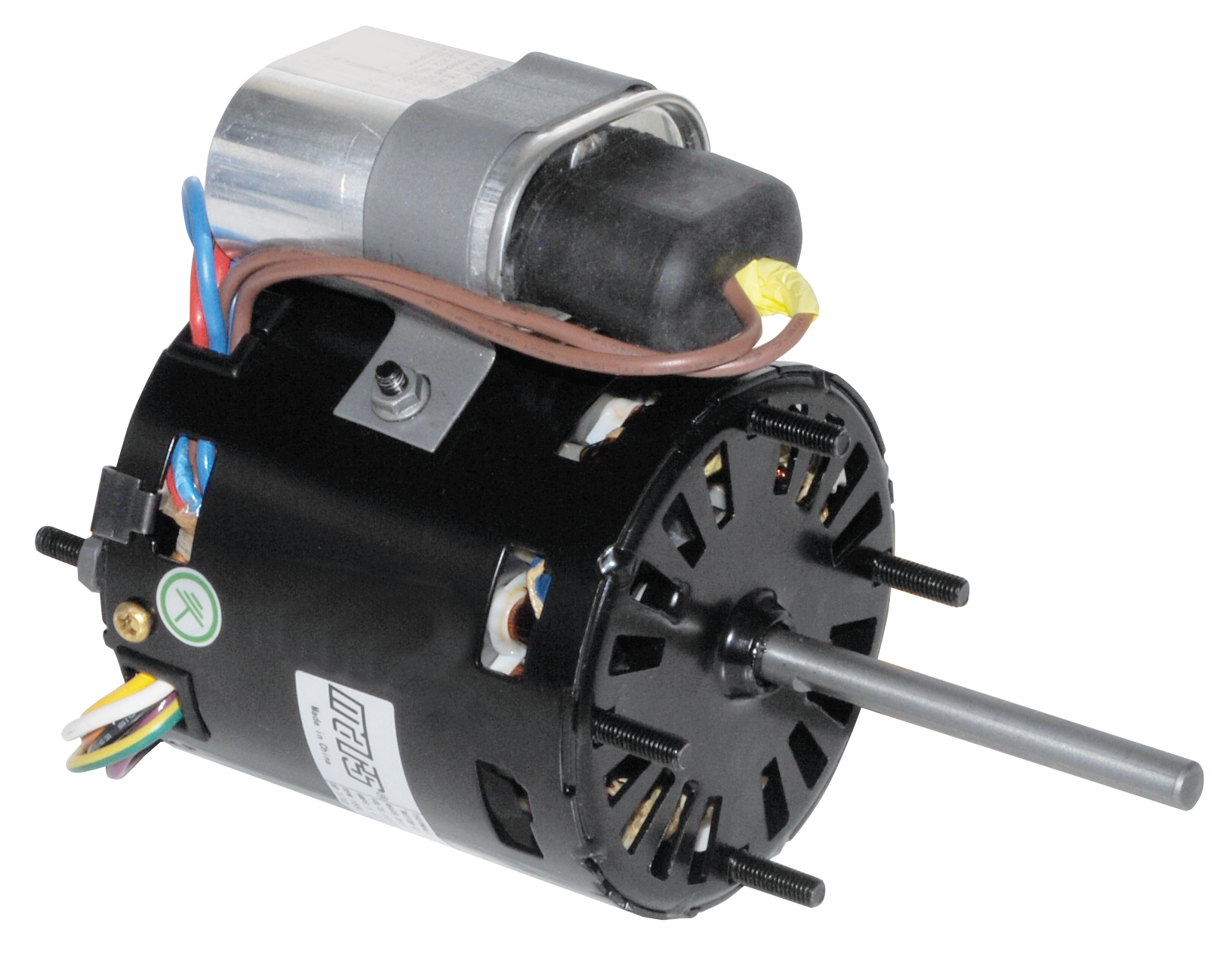

MARS 3.3 Commercial Refrigeration Multi-Horsepower Motor
- Motors delivers more power and lower amp draw compared to shaded pole
Replaces hundreds of OEM shaded pole evaporator fan motors found in Bohn, Nutone, Chandler, Larkin, Kramer, Climate Control, McQuay, Heatcraft and reduce truck stock costs
Motors
Motor Type
PSC
Enclosure
OAO
HP (Max.)
1/12
Voltage
115/230
Mounting
Thru Bolt
Speeds
1
Hz
60
Rotation
REV
Multi-Rated HP
1/12,1/15,1/20
RPM Range
1550
NEMA Frame Size
3.3 Stud
Phase
Single
Standards
CUL
FLA
1.1
Bearing
Sleeve
Lead Length (in.)
19
Thermal Protection
Auto
Ambient Deg C
60
Ins. Class
B
Shaft Dia. (in.)
5/16
Capacitor Included
Yes
Shaft Length (in.)
3.00
Capacitor Rating
7.5/370
| MFG Name | MFG # |
|---|---|
| Century/AO Smith | 9721 |
| US Motors/Emerson | 9650, 9651, 9652, 9653, 9656, 9664 |
| Fasco | D1101, D1103, D1122, D1123, D1124, D1125, D1126, D1127, D1152, D1154, PD1125, PD1127, 7163-2113, 7163-3371 7190-0442, 7190-2084, 7190-2255, 7190-2285, 7190-2969 |
| GE/Genteq | 5KSM59ES2001 5KSM59JSK143S 5KSM59JS5036S 5KSM59LS2262AS |
| Packard | 49101 |
Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.
