Home  >  Motors  >  OEM Replacement  >  More OEM Replacements  > REPLACEMENT FOR TYLER 52434980

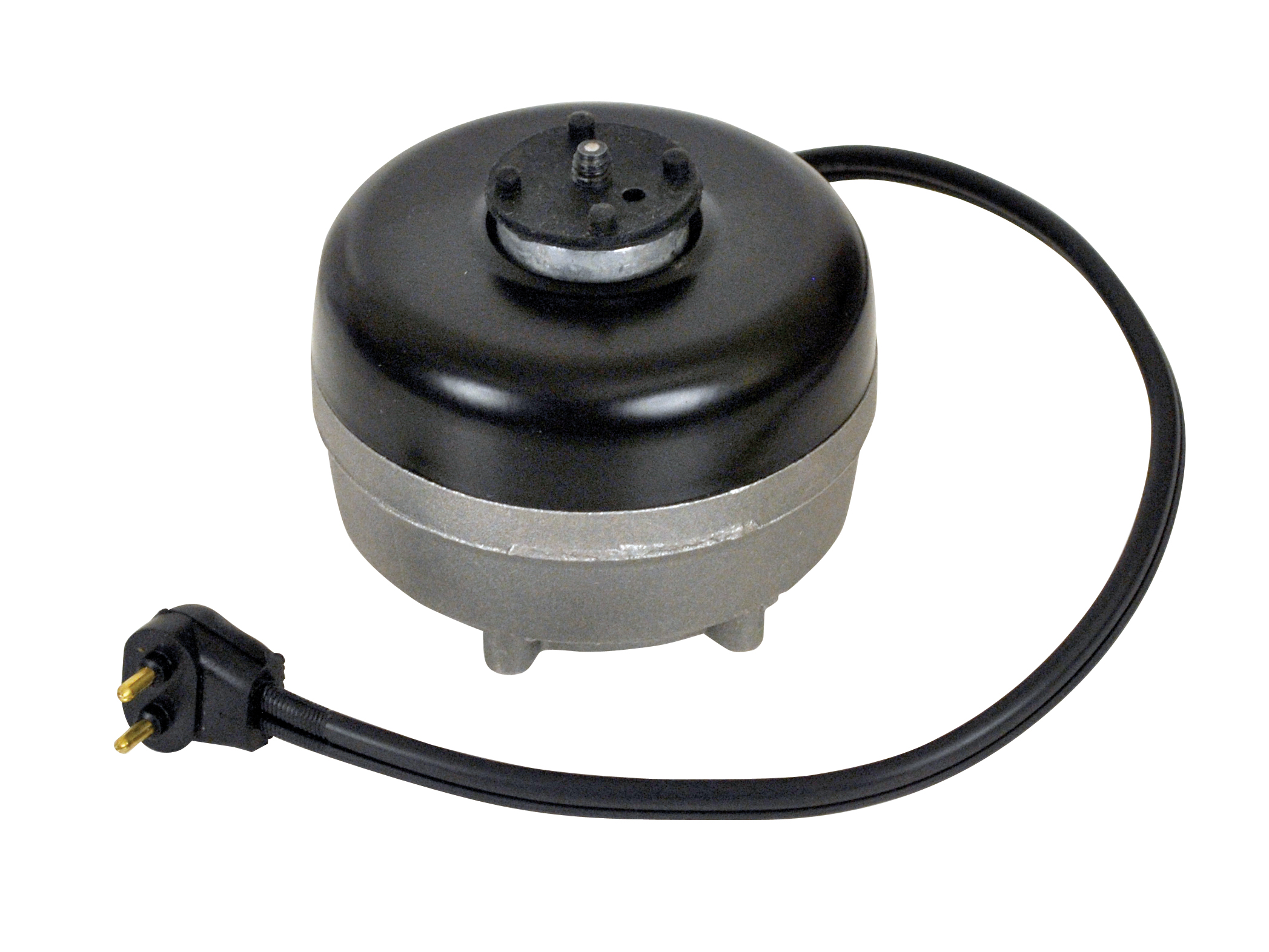

REPLACEMENT FOR TYLER 52434980

Motor Type Shaded Pole Enclosure TEFC HP (Max.) 9 Watt Voltage 115 Mounting Pad/Bracket Speeds 1 Hz 60/50 Rotation CW RPM Range 1550 NEMA Frame Size 51 Phase Single FLA 0.53 Bearing Sleeve Lead Length (in.) 15 Thermal Protection Auto Ins. Class B Shaft Dia. (in.) 1/4 Capacitor Included No Shaft Length (in.) 0.50
Item #: 00661
REPLACEMENT FOR TYL

Tyler Refrigeration OEM Direct Replacement Refrigeration Motor

  • Universal 5 hole rear mount
  • Dual mounting pads
  • Includes 90 degree Lyall plug

Motors

Motor Type
Shaded Pole
Enclosure
TEFC
HP (Max.)
9 Watt
Voltage
115
Mounting
Pad/Bracket
Speeds
1
Hz
60/50
Rotation
CW
RPM Range
1550
NEMA Frame Size
51
Phase
Single
FLA
0.53
Bearing
Sleeve
Lead Length (in.)
15
Thermal Protection
Auto
Ins. Class
B
Shaft Dia. (in.)
1/4
Capacitor Included
No
Shaft Length (in.)
0.50
