> ESP-0L50EMR2 MOTOR
Cast Iron Unit Bearing Single speed End or side pad mounting Smooth Flatted Shaft Heat isolated oil pump and reservoir

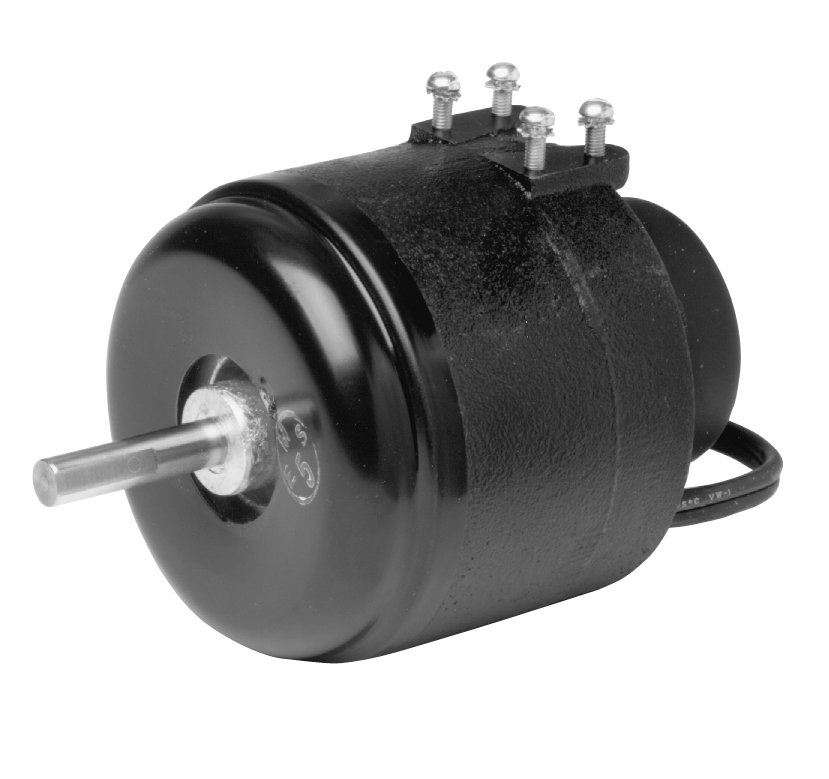

ESP-0L50EMR2 MOTOR
Motor Type
Shaded Pole
Enclosure
TEAO
H.P. (Max.)
50 Watt
Voltage
230
Speeds
1
Hz
60
Rotation
CCW
RPM Range
1550
NEMA Frame Size
51
Phase
Single
Standards
UL/CSA
FLA
0.85
Mount
Unit Bearing
Bearing
Cast Iron Unit Bearing
Shaft Length Inches
1.5
Shaft Dia Inches
3/8
Thermal Protection
Yes
Ambient Deg C
40
Ins. Class
Class B
Capacitor Included
No
Item #:
00504
