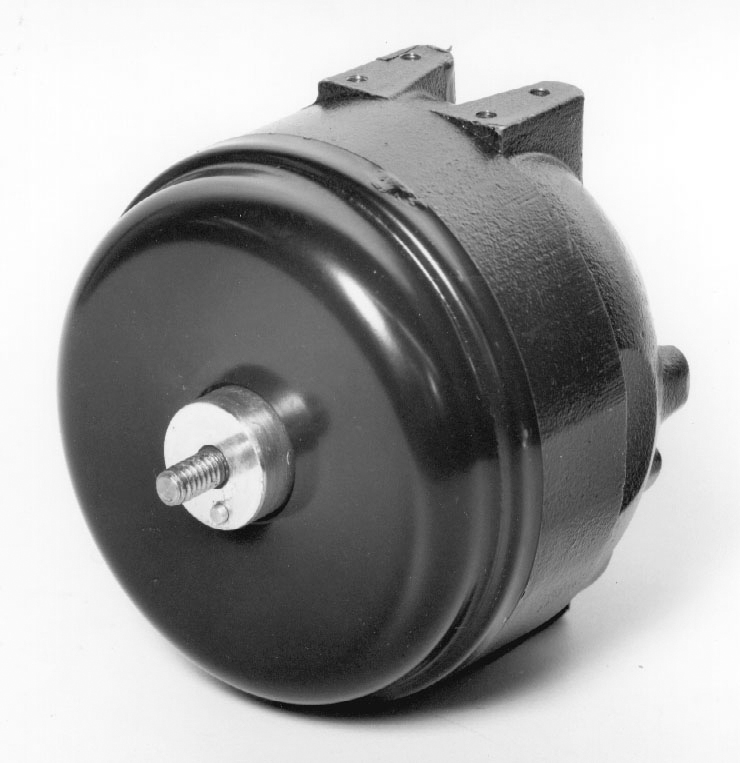

ESP-L25EM1 MOTOR
Motor Type
Shaded Pole
Enclosure
TEAO
H.P. (Max.)
25 Watt
Voltage
115
Speeds
1
Hz
60
Rotation
CW
RPM Range
1550
NEMA Frame Size
51
Phase
Single
Standards
UL/CSA
FLA
1.1
Mount
Unit Bearing
Bearing
Cast Iron Unit Bearing
Shaft Length Inches
0.425
Shaft Dia Inches
1/4
Thermal Protection
Yes
Ambient Deg C
40
Ins. Class
Class B
Capacitor Included
No
Item #:
00251
Motors
Motor Type
Shaded Pole
Enclosure
TEAO
H.P. (Max.)
25 Watt
Voltage
115
Speeds
1
Hz
60
Rotation
CW
RPM Range
1550
NEMA Frame Size
51
Phase
Single
Standards
UL/CSA
FLA
1.1
Mount
Unit Bearing
Bearing
Cast Iron Unit Bearing
Shaft Length Inches
0.425
Shaft Dia Inches
1/4
Thermal Protection
Yes
Ambient Deg C
40
Ins. Class
Class B
Capacitor Included
No
MFG Name | MFG # |
Century/A.O. Smith | UB25CWL |
EM&S | ESP-L25EMV1 |
EM&S | ESP-L25EMV11 |
EM&S | ESP-L25EMV16 |
EM&S | ESP-L25EM1 |
EM&S | ESP-L25EM13 |
EM&S | ESP-L25E11 |
EM&S | ESP-L25SEV1 |
EM&S | ESP-L25SE1 |
EM&S | ESP-L25SE1B |
Packard | 15001 |
EM&S | ESP-L20EMV1 |
Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.
