Home
>
Motors
>
Refrigeration
>
ECM
> 230V CW 1/15 HP 3.3 ECM

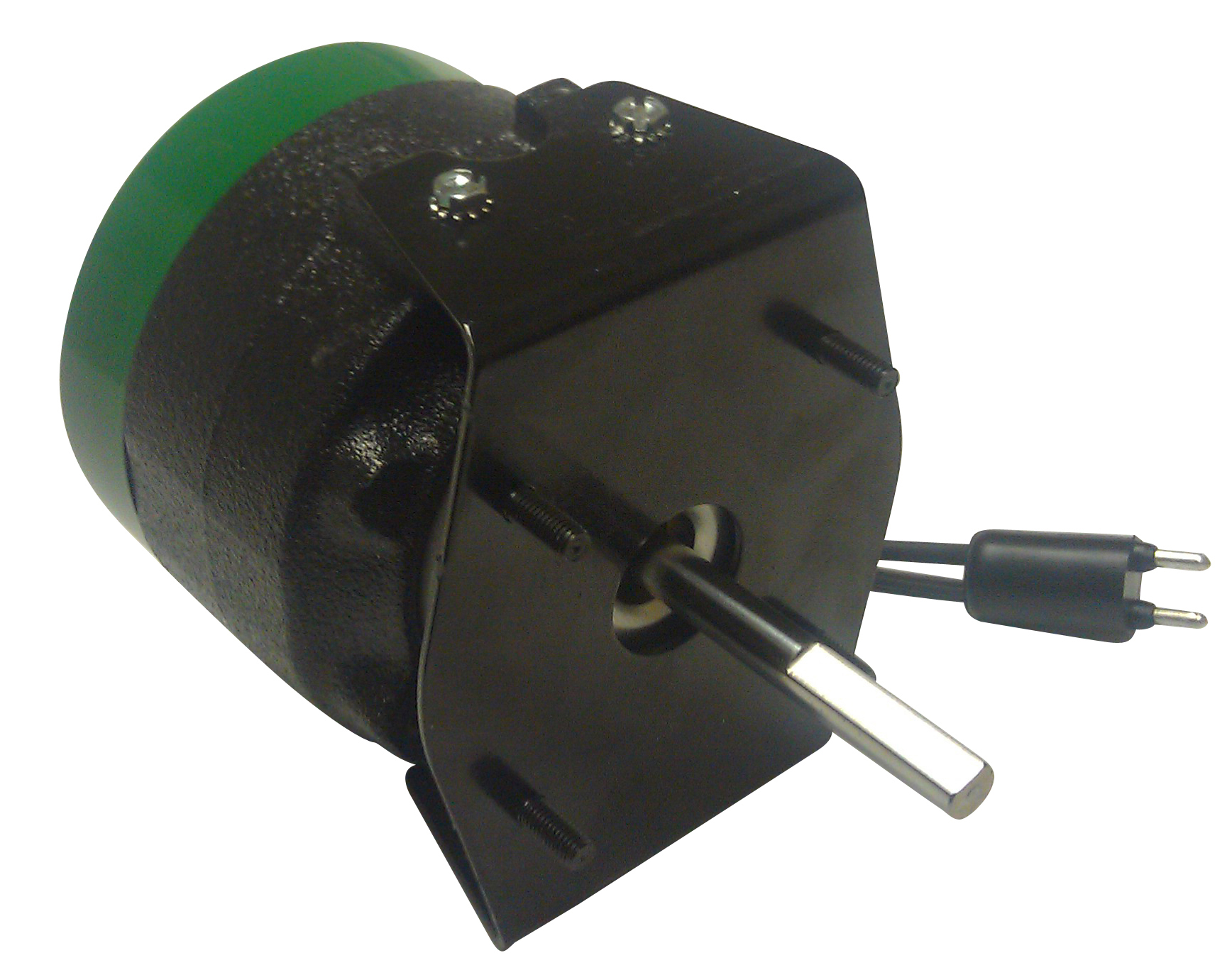

230V CW 1/15 HP 3.3 ECM
Motor Type
ECM
Enclosure
TEAO
H.P. (Max.)
1/15
Voltage
115
Speeds
1
Hz
60
Rotation
CW
RPM Range
1550
NEMA Frame Size
3.3 Stud
Phase
Single
Standards
UL/CUL
FLA
0.77
Mount
Unit Bearing
Bearing
Cast Iron Unit Bearing
Shaft Length Inches
2.657
Shaft Dia Inches
1/4
Thermal Protection
Yes
Ambient Deg C
40
Ins. Class
Class A
Capacitor Included
No
Item #:
00221
Motors
Motor Type
ECM
Enclosure
TEAO
H.P. (Max.)
1/15
Voltage
115
Speeds
1
Hz
60
Rotation
CW
RPM Range
1550
NEMA Frame Size
3.3 Stud
Phase
Single
Standards
UL/CUL
FLA
0.77
Mount
Unit Bearing
Bearing
Cast Iron Unit Bearing
Shaft Length Inches
2.657
Shaft Dia Inches
1/4
Thermal Protection
Yes
Ambient Deg C
40
Ins. Class
Class A
Capacitor Included
No
