Home  >  Service & Installation  >  Clamps  > SIZE 20 3/4-1 3/4 CLAMP DIA

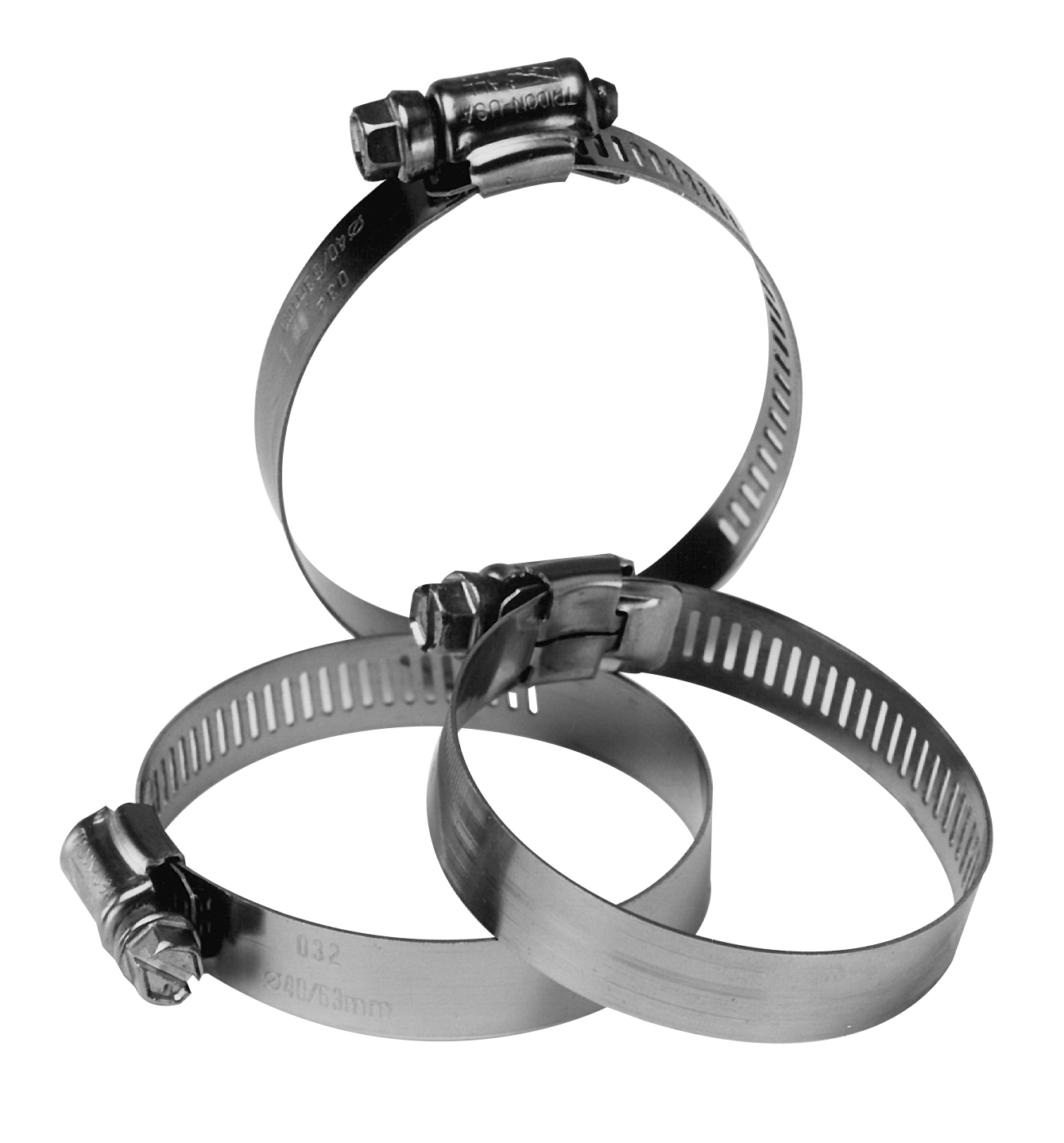

SIZE 20 3/4-1 3/4 CLAMP DIA

Clamp Type Band Width Worm-Gear, Type F Min. Dia. (in.) 3/4 Max. Dia. (in.) 1-3/4 SAE No. 20 Band Width (in.) 1/2 Screw Size 5/16 Ultimate Torque 50 in-lbs # of Band Slots 53 Band Material 200 SS Housing Material Plated Carbon Steel Screw Material Plated Carbon Steel
Item #: 79315

Standard Pack: 10
Must order in multiples of: 10
79315
  • Worm Drive & Specialty Hose Clamp
  • Maximum Anti-Shear Protection
  • 1/2 inch Clamps
  • Carbon Steel Housing
  • Locks the one pc housing to band
  • Hose Clamps

    Clamp Type
    Band Width Worm-Gear, Type F
    Min. Dia. (in.)
    3/4
    Max. Dia. (in.)
    1-3/4
    SAE No.
    20
    Band Width (in.)
    1/2
    Screw Size
    5/16
    Ultimate Torque
    50 in-lbs
    # of Band Slots
    53
    Band Material
    200 SS
    Housing Material
    Plated Carbon Steel
    Screw Material
    Plated Carbon Steel
