Home  >  Motors  >  HVAC  >  Direct Drive  > 1/6-1/2 MULTI HP 230V

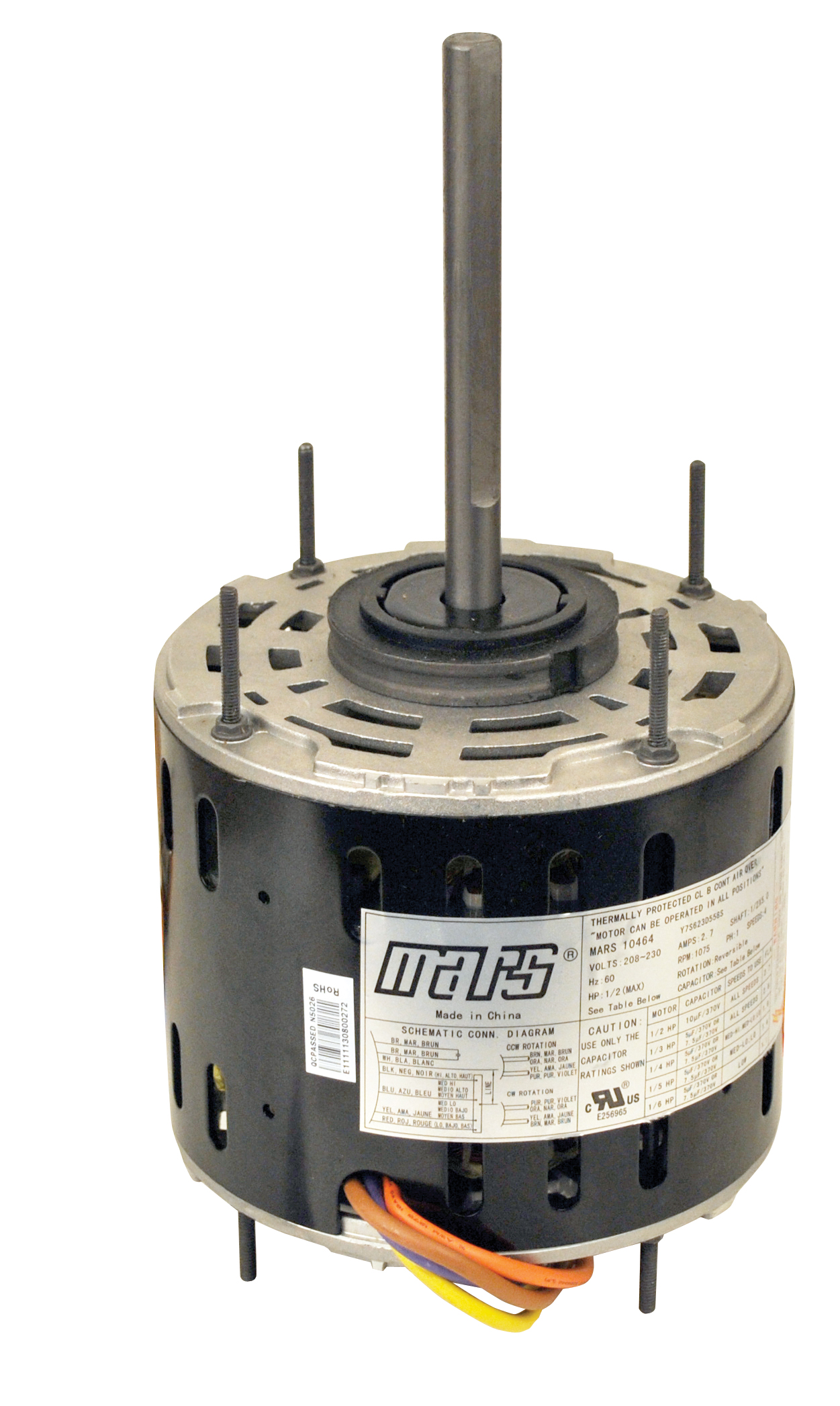

1/6-1/2 MULTI HP 230V

Motor Type PSC Enclosure OAO H.P. (Max.) 1/2 Voltage 208-230 Multi-Rated H.P. 1/6-1/2 Speeds 4 Hz 60 Rotation REV RPM Range 1075 NEMA Frame Size 48 Phase Single Standards CUL FLA 2.7 Mount All Angle Bearing Sleeve Shaft Length Inches 5.5 Shaft Dia Inches 1/2 Thermal Protection Auto Ambient Deg C 40 Ins. Class Class B Capacitor Included No Capacitor Rating 10/7.5/5/370
Item #: 10464
10464

Motors

Motor Type
PSC
Enclosure
OAO
H.P. (Max.)
1/2
Voltage
208-230
Multi-Rated H.P.
1/6-1/2
Speeds
4
Hz
60
Rotation
REV
RPM Range
1075
NEMA Frame Size
48
Phase
Single
Standards
CUL
FLA
2.7
Mount
All Angle
Bearing
Sleeve
Shaft Length Inches
5.5
Shaft Dia Inches
1/2
Thermal Protection
Auto
Ambient Deg C
40
Ins. Class
Class B
Capacitor Included
No
Capacitor Rating
10/7.5/5/370
MFG NameMFG #
Century/A.O. SmithFD6000
US Motors/Emerson5461
FascoD833
Genteq/Regal3464
MarathonX073
Nordyne/Partners Choice01-0699
Rheem/Ruud Protech51-23022-41
Carrier/Totaline RCDP257-E5461
Diversitech/WagnerWG840464
York/Source 2S1-FHM3464
ROTOMR43601

Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.

©MOTORS & ARMATURES, INC.

MFG NameMFG #
JARD22464

Be careful! The information provided is intended to serve as a reference to assist in the selection of products sold by MARS. It is the responsibility of users to validate any cross reference information provided to determine suitability for the intended application. The company is using the competitor's brand names for reference only, and without license or permissions of those companies.

©MOTORS & ARMATURES, INC.
