Home  >  Motors  >  Refrigeration  >  3.3 Inch  > 1/20HP 208/230V 3.3 LARKIN REP

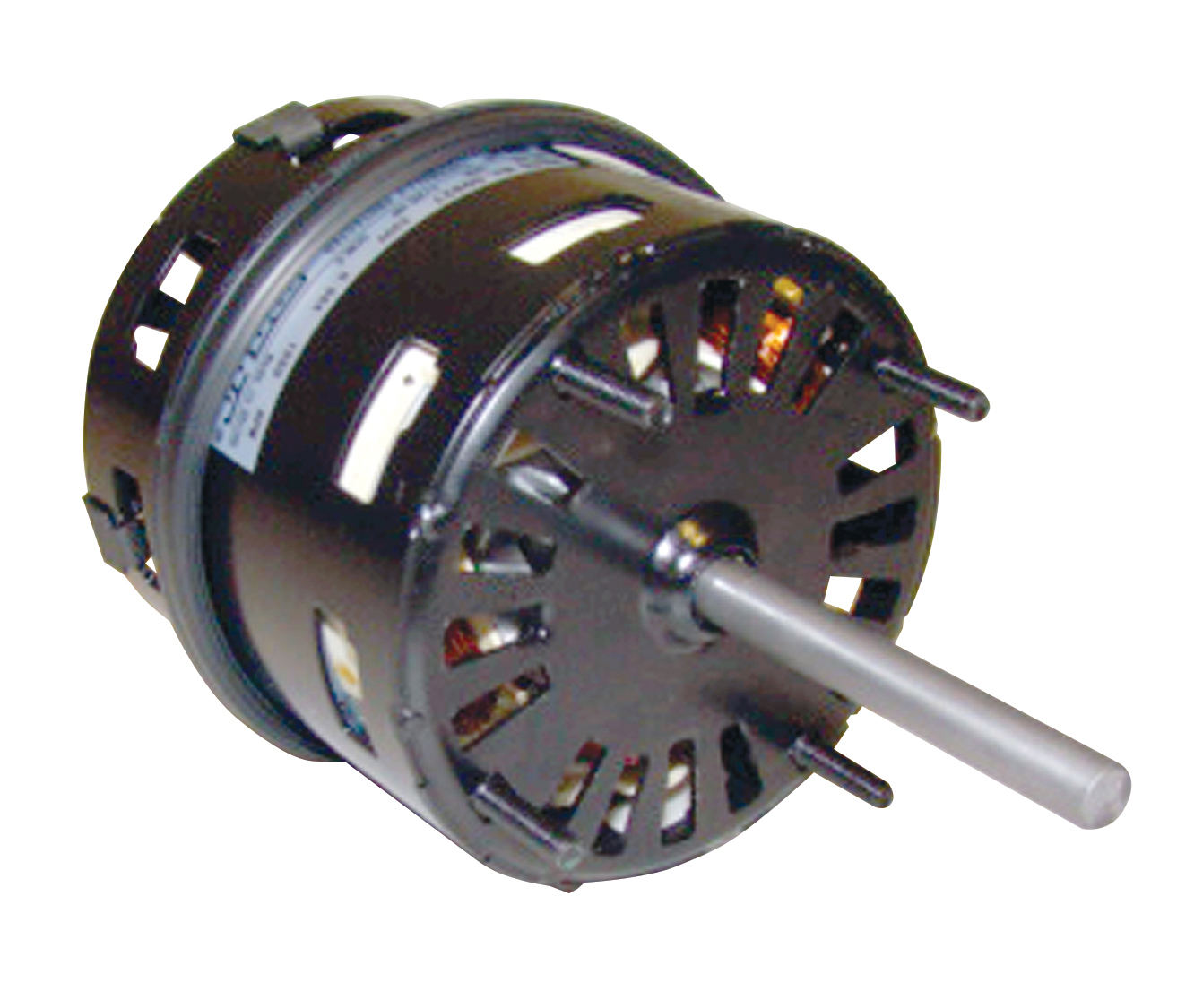

1/20HP 208/230V 3.3 LARKIN REP

Motor Type Shaded Pole Enclosure Open H.P. (Max.) 1/20 Voltage 208-230 Speeds 1 Hz 60 Rotation CCW RPM Range 1550 NEMA Frame Size 3.3 Phase Single Standards CSA FLA 1.3 Mount Thru Bolt Bearing Sleeve Shaft Length Inches 2.25 Shaft Dia Inches 5/16 Thermal Protection Auto Ambient Deg C 40 NOTE Ripcord 18/2 Ins. Class Class B Capacitor Included No
Item #: 09933
09933

MARS One-On-One™ 3.3" Commercial Refrigeration Evaporator Fan and Blower Motors

  • Sleeve Bearing
  • Original OEM-type mounting
  • Original OEM-type wiring
  • Specially selected low temp oil
  • Full flatted oxide shaft
  • Motors

    Motor Type
    Shaded Pole
    Enclosure
    Open
    H.P. (Max.)
    1/20
    Voltage
    208-230
    Speeds
    1
    Hz
    60
    Rotation
    CCW
    RPM Range
    1550
    NEMA Frame Size
    3.3
    Phase
    Single
    Standards
    CSA
    FLA
    1.3
    Mount
    Thru Bolt
    Bearing
    Sleeve
    Shaft Length Inches
    2.25
    Shaft Dia Inches
    5/16
    Thermal Protection
    Auto
    Ambient Deg C
    40
    NOTE
    Ripcord 18/2
    Ins. Class
    Class B
    Capacitor Included
    No
